The V2G charger ensures the power supply and demand in good balance between the grid and EV battery by taking the EV battery as an energy storage device and through the help of local or remote Energy Management System. It also supports flexible PV energy access to optimize grid peak-valley electricity usage, supplement the grid capacity and provide backup power supply. It can be a core node to smart grid or micro grid access and also an important supplement to the user-side energy storage system.
V2H/V2G SOLUTION

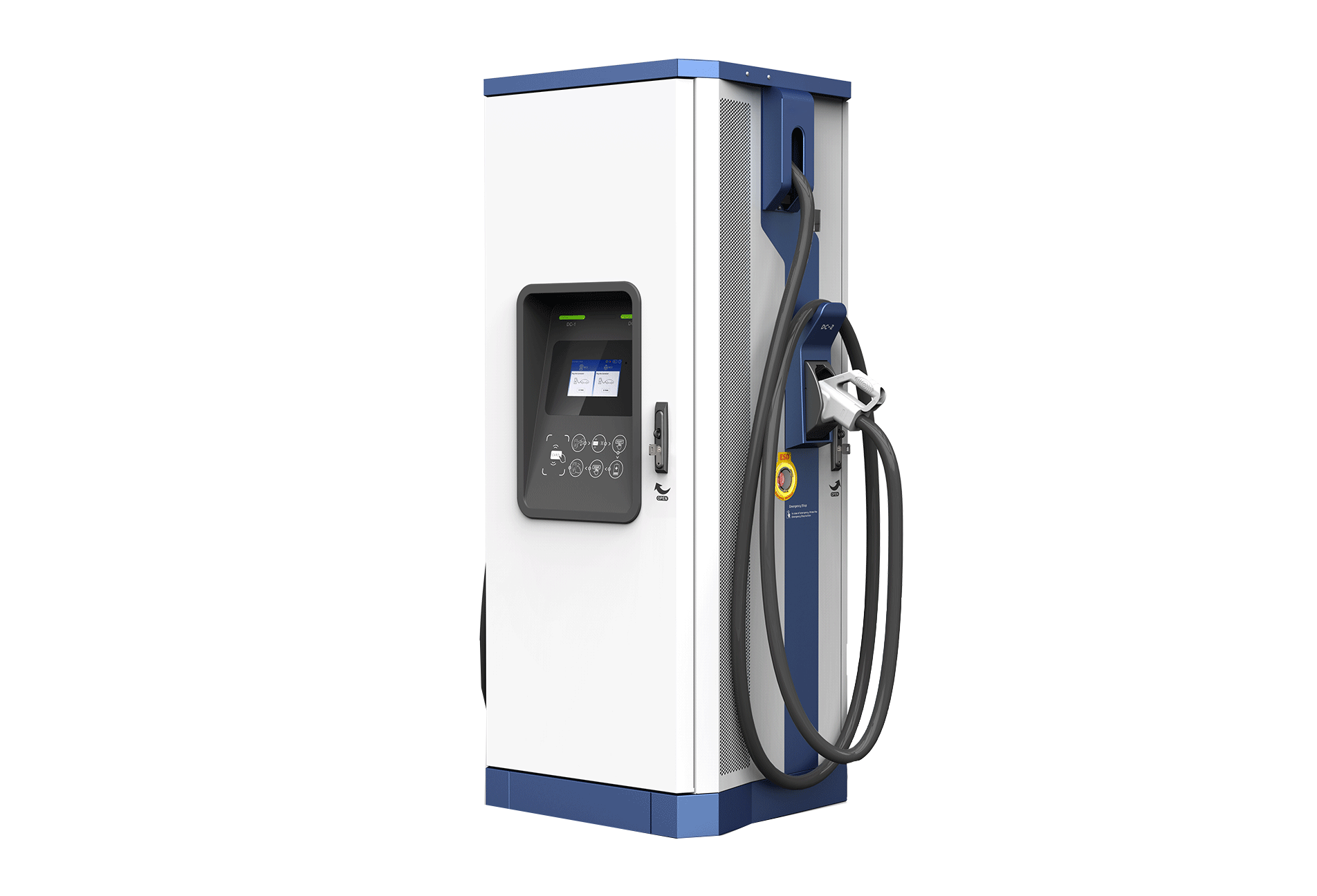

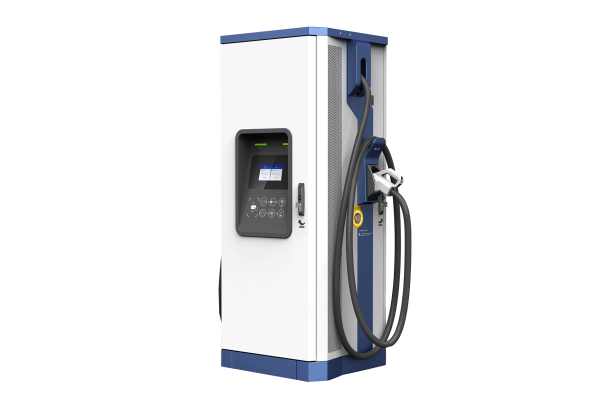

132kW V2G DC Fast Charger
Description
Additional information
| AC grid access | AC mode: 45-65Hz/3-phase+(N)+PE/260Vac-530Vac |
|---|---|
| EV charging | Max charging power: 22 kW |
| EV discharging | Max V2G feedback poweer: 132 kW |
| Optional battery energy storage access | Battery voltage: 300~1000V |
| Metering | AC Grid side (optional): One bidirectional AC energy meter |
| Dimensions | W * H * D mm: 700 * 1750 * 750 mm |
| Weight | 250 kg |
| Protection class | IP55/IK10 |
| Thermal management | Air cooled |
| Ambient temp | -30 ~ +70°C, full power output below 50°C, power derating 5%/°C above 50°C |
| EMC/safety | cTUVus, UL2202, TUV CE/RED EN62909, EN61000-6-3/EN61000-6-1 Class A; EN 61851-1/EN 61851-23/EN 61851-24 |
| Grid connection | VDE-AR-N 4105, EN50549, UL1741SB |
| Configuration | Power module configuration: 6 * 22kW power module |
| Function and interface | HMI: Tempered glass protective 7" TFT touch screen LCD, RFID, RGB panel LED, POS (opt) |
