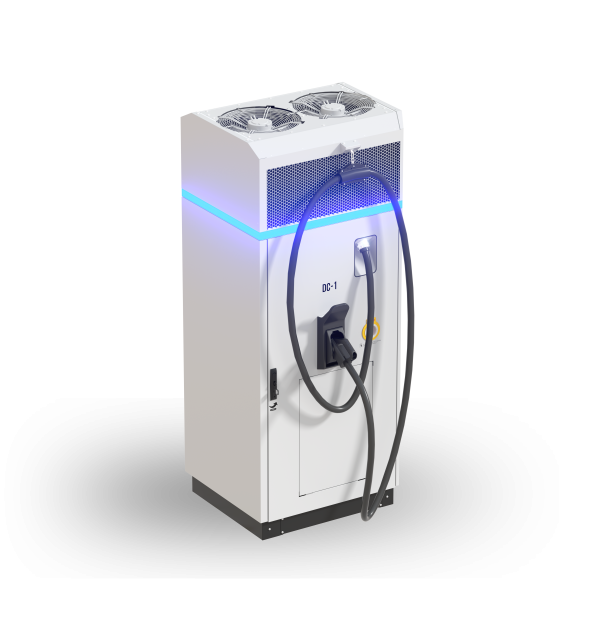

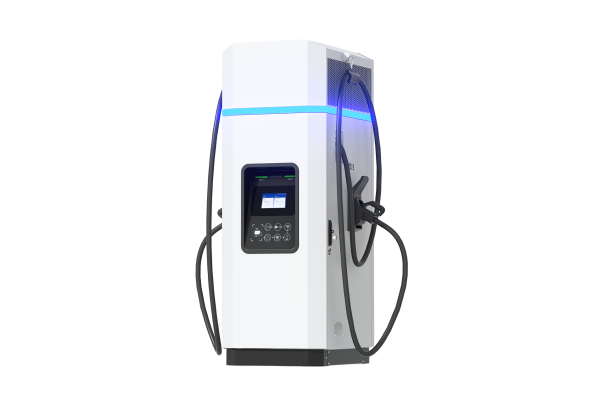

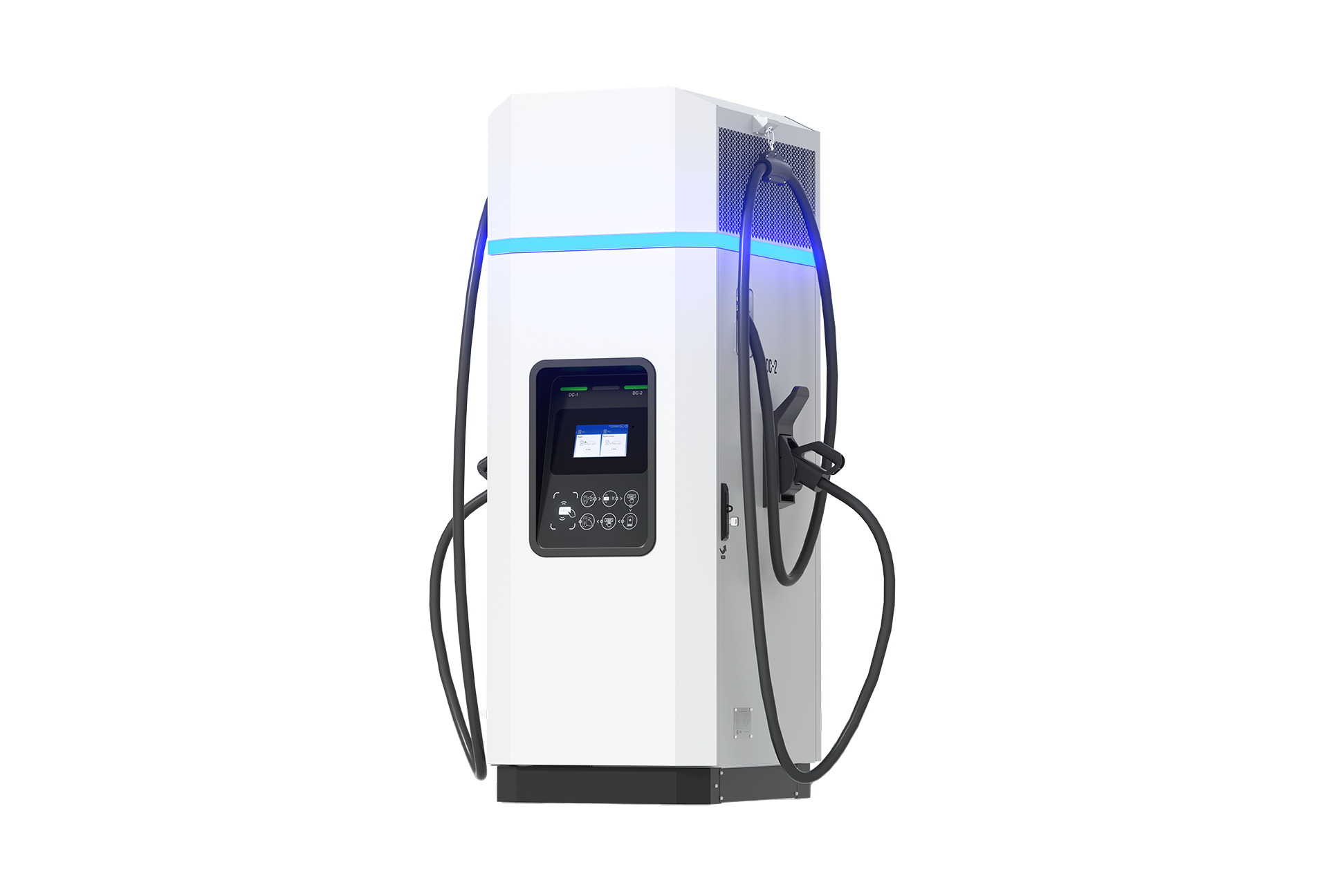

180kW IP65 Fully Liquid Cooled Fast DC Charger

EXP180K4-LD DC charger is all in one design and fully compatible with CCS2/CHAdeMO/GBT EV charging standard. It features a fully liquid cooled design with low audio noise, high protection, high reliability and high integration. It employs reliable liquidcooled power modules and reaches IP65 protection rating for various harsh environment applications. It can deliver up to 180kW charging power and up to 500A charging current with the output voltage from 150V to 1000Vdc.

Description

EXP180K4-LD IP65 Fully Liquid Cooled Fast DC Charger

Additional information

Input Parameters	AC frequency: 45-65Hz AC voltage: 3-phases+N+PE, 380/400Vac±10% Power factor: >0.99 Total harmonic current: <3% (rated input )
Output Parameters	Output DC voltage range: DC 150V-1000V Max DC output current: 600A@300V/360A@500V/180A@1000V Max DC output power: 180kW Constant power voltage range: 300~1000V Max system efficiency: >95% (rated input and output)
Working Environment	Ambient temperature: -30°C ~ +65°C, full power output below 50°C, power derating 5%/°C above 50°C Storage temperature: -40°C ~ +75°C Working humidity: 0-95% Working altitude: 2000m
Standard	Backend: OCPP 1.6J, support firmware update to 2.0x, OTA support, P&C/smart charge/power management support CCS PLC communication: DIN70121 and ISO15118 CHAdeMO: CHAdeMO V1.2 GBT: GB/T 18487.1-2015, GB/T 27930-2015, GB/T 20234.1~3-2015 Certification: TUV CE, RED, CB, OCA EN61851-21-2 Class A; EN 61851-1/EN 61851-23/EN 61851-24 Protection class: IP65/IK10 (touch screen IK08)
Function and Interface	HMI: Tempered glass protective 7" TFT touch screen LCD, three RGB LED, EPO Metering: DC energy meter, GB/T 29318 and JJG1149 standard, optional MID meter Monitor: interface LAN and LTE wireless modem support Optional CoolRingTM power transfer: Realize the power transfer between two chargers, each charging connector can get the total charging power Power switch mode: Intelligent power switch matrix between two DC charging connectors Payment: RFID, Mobile APP, POS (opt) MBE function support: WEB side Maintenance Backend System enhances the operation and maintenance effectiveness
Mechanical	Dimensions (W * H * D mm): 700 × 1995 × 850 mm Weight (kg): 528 kg
Charging Protection	Overcurrent protection, short circuit protection, overvoltage protection, undervoltage protection Insulation monitoring, protect earth connect monitoring Reverse polarity protection, overtemperature protection RCD-A main protection
Configuration	Charger module configuration: LRG1K0100G 30kW1000V liquid cooled charger power module, total 6 power module sockets Charging connector configuration: 2 * CCS2/GBT or CCS2+GBT/CHAdeMO Charging connector capacity: GBT: 250A/400A/500A CCS2: 250A/375A/500A CHAdeMO: 125A/200A
