<h1 class="wow ys-fadeup1">25kW 200V Low Output Voltage ACDC Power Module</h1>

AC2DC EV charger power module, POWER MODULE SOLUTION

25kW 200V Low Output Voltage ACDC Power Module

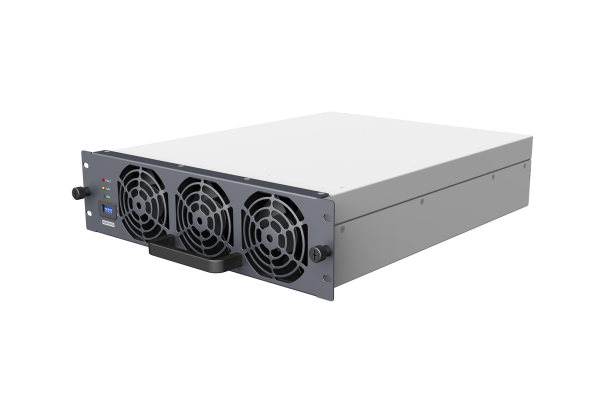

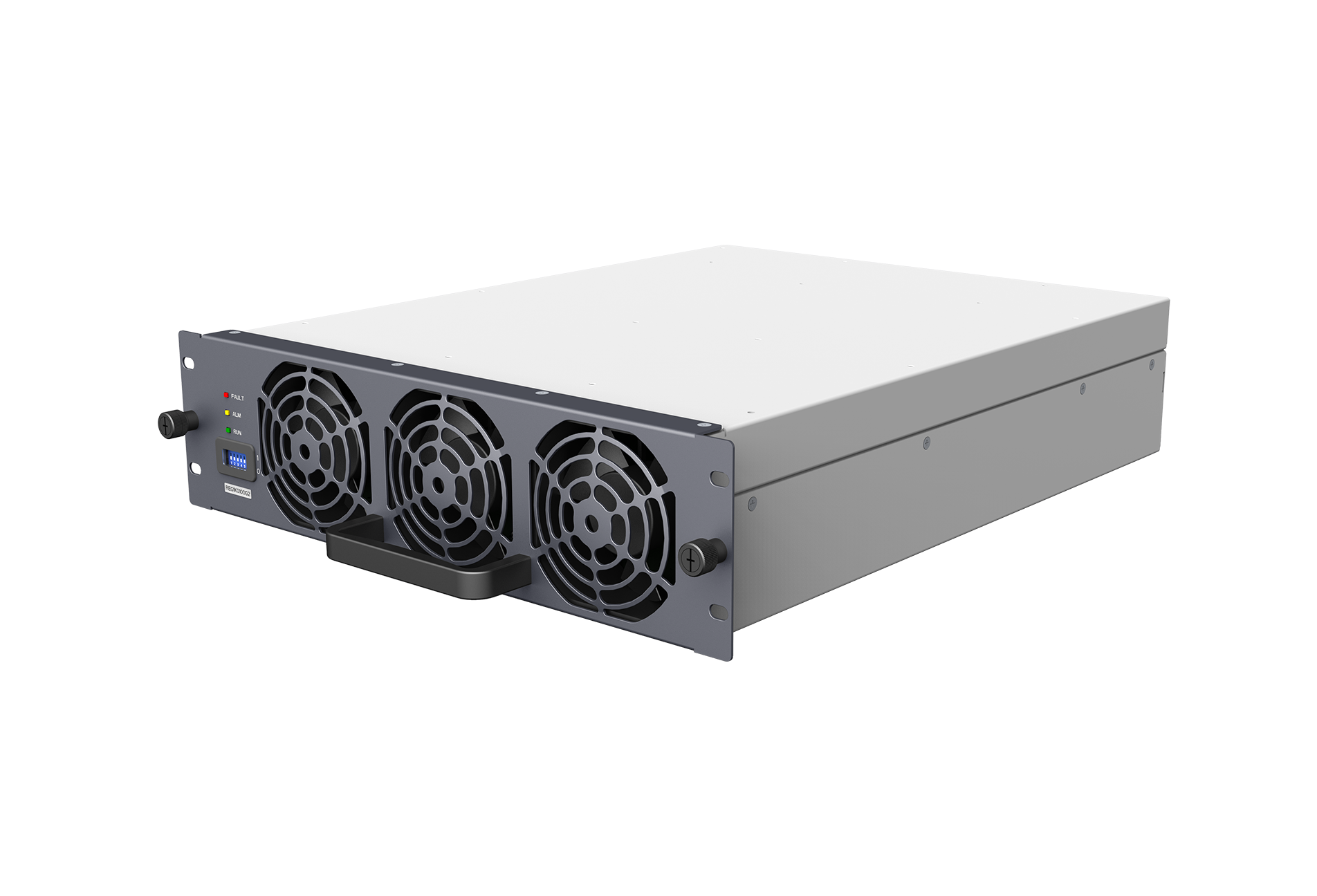

REG200250G is an ACDC power module that features low output voltage and high current. It specifically aims for low-voltage EV chargers, electric forklifts, AGVs and industrial power applications. It has the features of high efficiency, high power density and high reliability. By 3 phase 4 wire AC input, it covers 20~200VDC output voltage range and delivers up to 25kW output power. The EMC/EMI qualifies for CE certification with class B level, and the safety qualifies for both cTUVus and CE certification.

Description

REG200250G

Additional information

Environment	Ambient temperature: -40℃~+75℃, power derating from 55℃ Storage temperature: -40℃~+70℃ Humidity: ≤95%RH, non-condensing Cooling: Fan cooling Altitude:2000m
Input Side	Frequency range: 45~65Hz Input voltage range: 3L+PE , 180Vac~530Vac Power factor: 0.99 @full load output power, rated input voltage and frequency Max input current: 51A ITHD (total harmonic distortion) : ≤5%, @50%~100% full load output power Peak efficiency: ≥96.05%, @480Vac Full load efficiency : ≥950V-125A@380Vac，≥960V-125A@480Vac
Output Side	Output power: 25kW@ voltage > 100Vdc Voltage range: 20Vdc~200Vdc Current range: 0~250A Current sharing <±1A Voltage stabilization accuracy : <±0.5% Current stabilization accuracy: ≤±1% (output power in 20%~100%) Stand by power consumption: <12W@380Vac, <14W@480Vac
Control	Communication : CAN bus, max 36 power modules in parallel Indication light: Green LED: normal operation; yellow LED: alarm; red LED: failure Address indication: Automatic address identifcation, panel dial switch for group seting Noise seting: Power mode with max 75 dB, denoise mode with max 70 dB, quiet mode with max 60 dB ESTOP: Quickly stop output less than 60V in 300ms , outerside 12V DO control
Alarm and Protection	Input/output voltage protection : Over/under volt protection with automatic shutdown/restart when the volt returns to normal Over current/short circuit protection : Automatic shutdown and lock, power of to start and unlock Over temperature protection:Automatic shutdown , automatic restart when the temperature returns to normal
EMC/EMI	CE certification: EN61000-6-1/2/3/4 Class B
Safety	cTUVus/CE certification: UL1564, EN62477-1
Reliability	MTBF: >300, 000 h
Mechanical	Dimensions: 84mm (H) × 300mm (W) × 395mm (D) Weight: ≤15.5 kg
Ordering Information	Type: REG200250G
