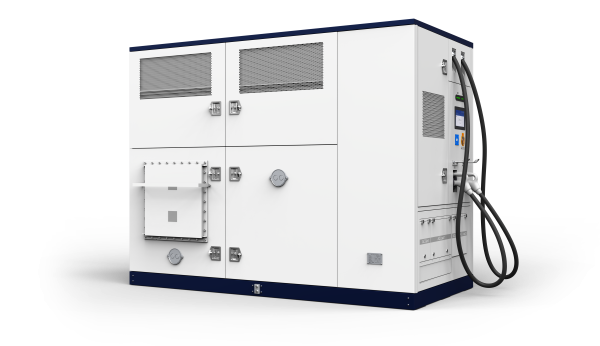

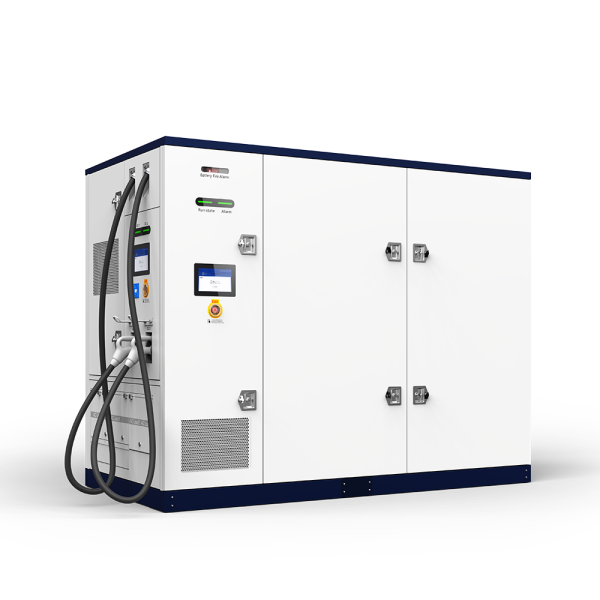

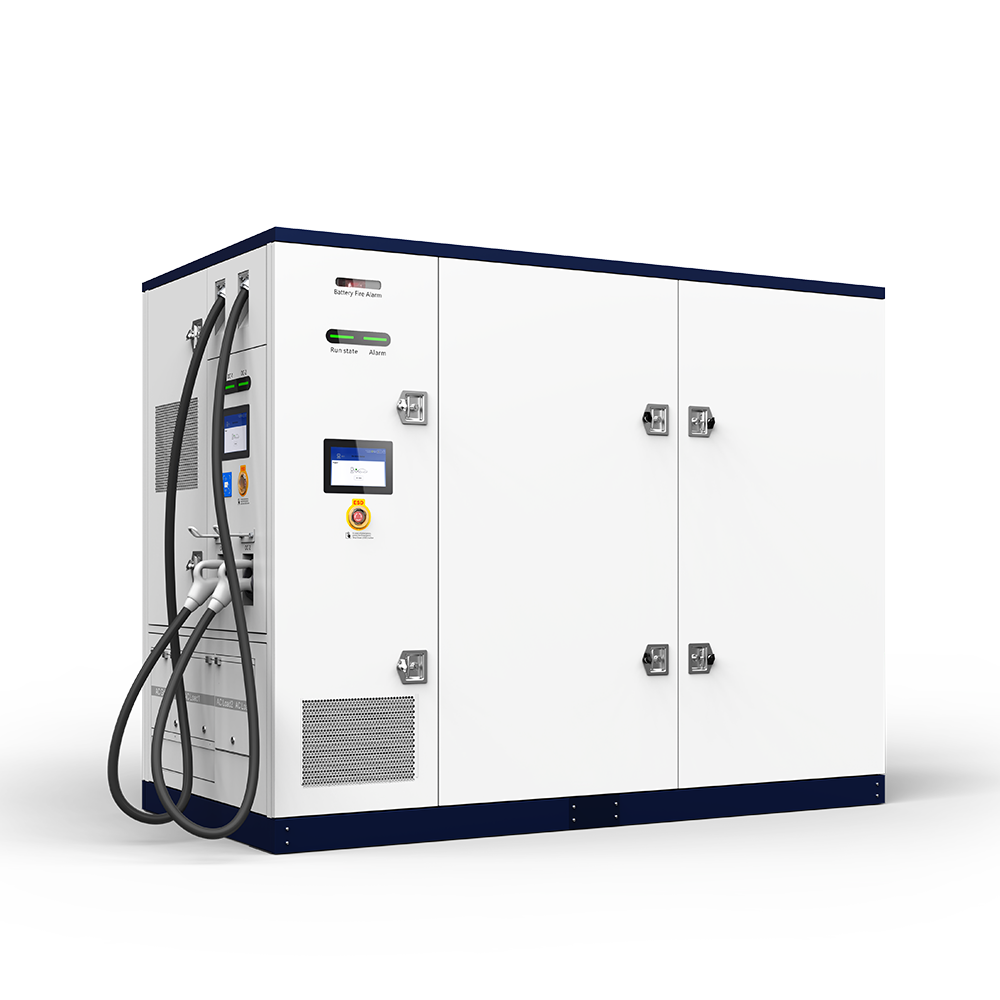

IHEBV470K7D-350LL3C Liquid Cooled BES Movable All in One Battery Charger
EV CHARGER SOLUTION
470kW/350kWh Liquid Cooled BESS Movable All in One Charger System
Off-grid and movable energy storage charging solution supports the temporary rescue charging service and off-grid power supply service. The energy storage charging system employs LFP battery for energy storage and helps balance the power supply and demand between the grid, battery and EV charging through the local and cloud EMS. Fully liquid cooling solution for battery groups can realize the 1P/1C discharge performance to meet the AC grid power limit and high power charging ability with energy cost efficiency and space saving, and can realize long life cycle. Full off-grid electric design and enhanced structural design can be suitable for long-term vibration transportation and temporary field charging.
Description
Additional information
| IHEBV470K7D-350LL3C 470kW/350kWh BES Movable All in One Battery Charger | IHEBV470K7D-350LL3C 470kW/350kWh BES Movable All in One Battery Charger |
|---|---|
| AC grid access | AC input voltage: 45-65Hz/3-phase+(N)+PE/260Vac-530Vac |
| External DC charger charging access | Access interface: 2 CCS socket-inlets |
| Electric vehicle charging | EV charging point: 2 connectors |
| Metering | AC grid side: 1 AC energy meter, optional MID DC meter |
| HMI | Tempered glass protective 10" capacitive touch screen LCD, RGB panel LED, E-STOP batt alarm light and beeper |
| Payment | RFID, optional credit card reader installation |
| Monitor | OCPP 1.6J, support update to 2.0, P&C, smart charge and power management support, LAN 100M and LTE wireless modem support |
| Noise | < 60dB |
| Dimensions | W * H * Dmm = 2800 * 2200 * 1400mm; Weight: < 7000kg |
| Charging and billing modes | Auto full charge, charge time, amount, charge energy, charge end SOC |
| Charging connector configuration | 2 * CCS, or CCS + NACS |
| Power Module Configuration | 12 power module slots for the configuration |
| 2 * 175kWH Liquid Cooled Battery Packs | Energy storage battery: Two groups of 175kWh/285Ah liquid cooled battery packs. Bat volt: 537.6~691.2VDC, 1 P/C dis/charge, max 1.1P/C discharge 10 min |
