<h1 class="wow ys-fadeup1">40kW 1000V Variable Power Factor ACDC Power Module</h1>

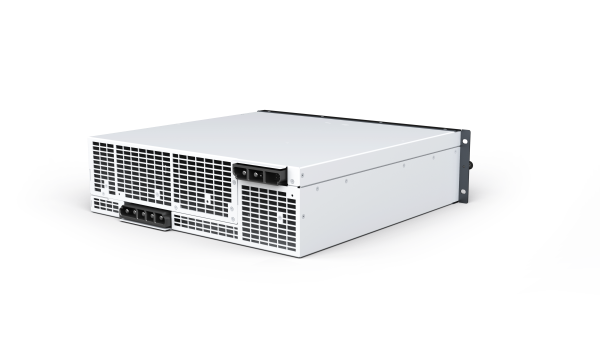

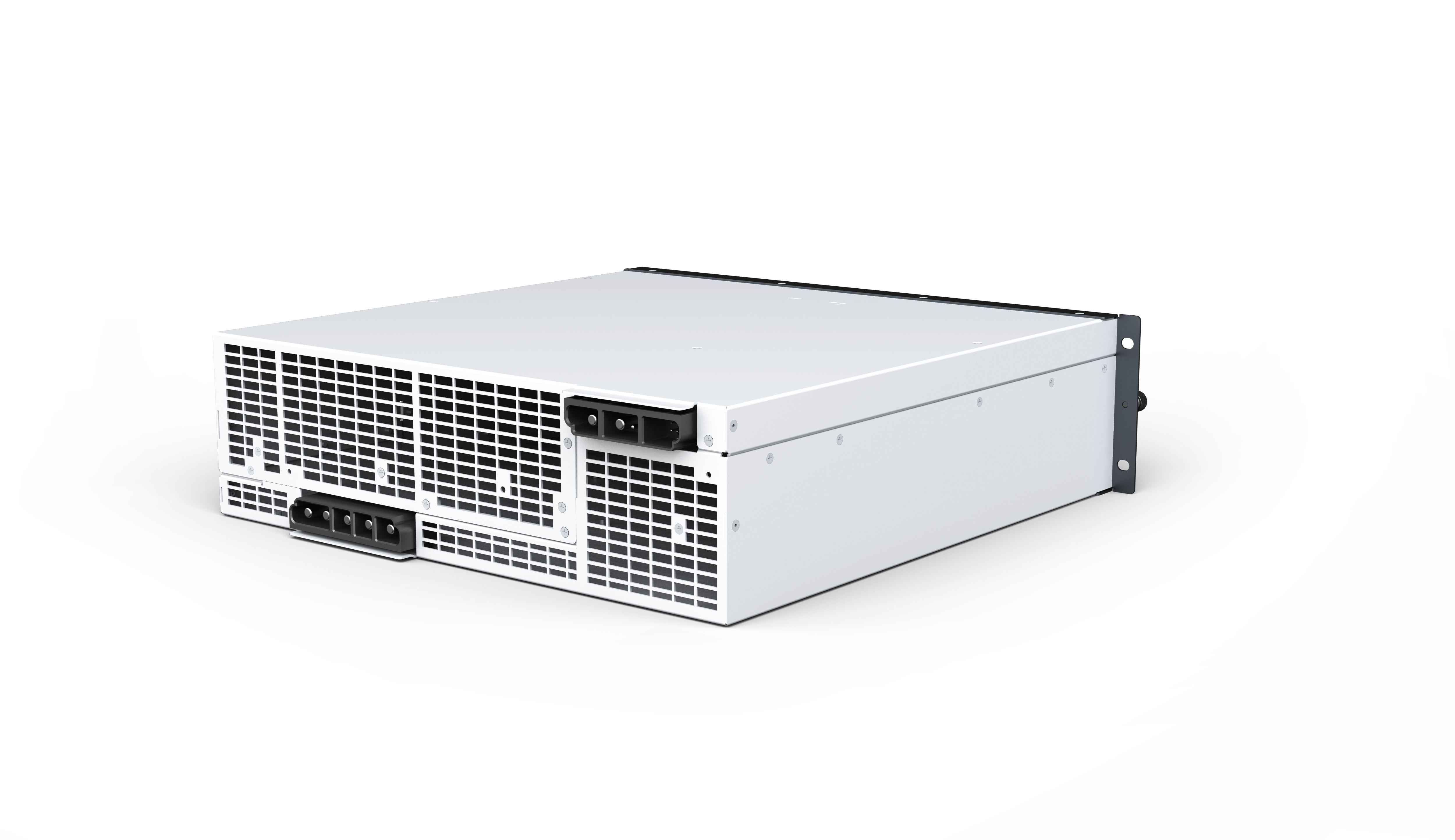

<h1 class="wow ys-fadeup1">40kW 1000V Variable Power Factor ACDC Power Module</h1> - Image 2
,

40kW 1000V Variable Power Factor ACDC Power Module

REG1K0135P2 is a VPF DC charging module specifically designed for EV charging applications with PF adjustment or reactive power compensation requirements. It uses a 3-phase AC input without a neutral line and features wide PF regulation range, wide reactive power compensation range, high efficiency, high power density and low harmonics.

Description

REG1K0135P2

Additional information

Environmental

Ambient temperature: -40°C~+75°C, power derating from 55°C
Storage temperature: -40°C~+70°C
Humidity: ≤95%RH, non-condensing
Cooling: Forced air cooling
Altitude: ≤2000m

AC input

Frequency range: 45~65Hz
Input voltage range: 3L+PE, 260Vac~530Vac
Power factor: >0.9@no load, ≥0.99 @50%~100% full load output power, rated input voltage and frequency
Max input current: 78A
ITHD (total harmonic distortion): ≤5% @output power > 15kW or reactive power > 15kVar
PF adjustment range: 0.8C~0.8L
Reactive power compensation range: 40kVar

Peak efficiency

> 97.5%

Full load efficiency

> 96.5%

DC output

Output power: 40kW @voltage >300Vdc
Voltage range: 150Vdc~1000Vdc
Current range: 0~133.3A
Current sharing: <±5% (10%~100% load)
Voltage stabilization accuracy: <±0.5%
Current stabilization accuracy ≤±1% (output power in 20%~100%)

Control

Communication: CAN bus, max 32 power modules in parallel
Indication light:
Green LED: normal operation; yellow LED: alarm; red LED: failure
Address indication: Automatic address identification, panel dial switch for group setting
Noise setting: Standard mode with max 78dB, de-noise mode with max 65dB, silent mode with max 55dB
ESTOP: Quickly stop output less than 60V in 300ms, outerside 12V DO control

Alarm and protection

Input/output voltage protection: Over/under volt protection with automatic shutdown/restart when the volt returns to normal
Over current/short circuit protection: Automatic shutdown and lock, power off to start and unlock
Over temperature protection: Automatic shutdown; enters standby state and waits for a power-on command to start working when the temperature returns to normal

EMC/EMI

EN61851-21-2, Class B

Safety

UL2202, EN61851-1, EN61851-23

Reliability

MTBF: >300,000 h

Mechanical

Dimensions: 84mm (H) × 300mm (W) × 395mm (D)
Weight: ≤17kg

Ordering information

Type: REG1K0135P2

Certification

UL/KC/TUV CE/ cTUVus
