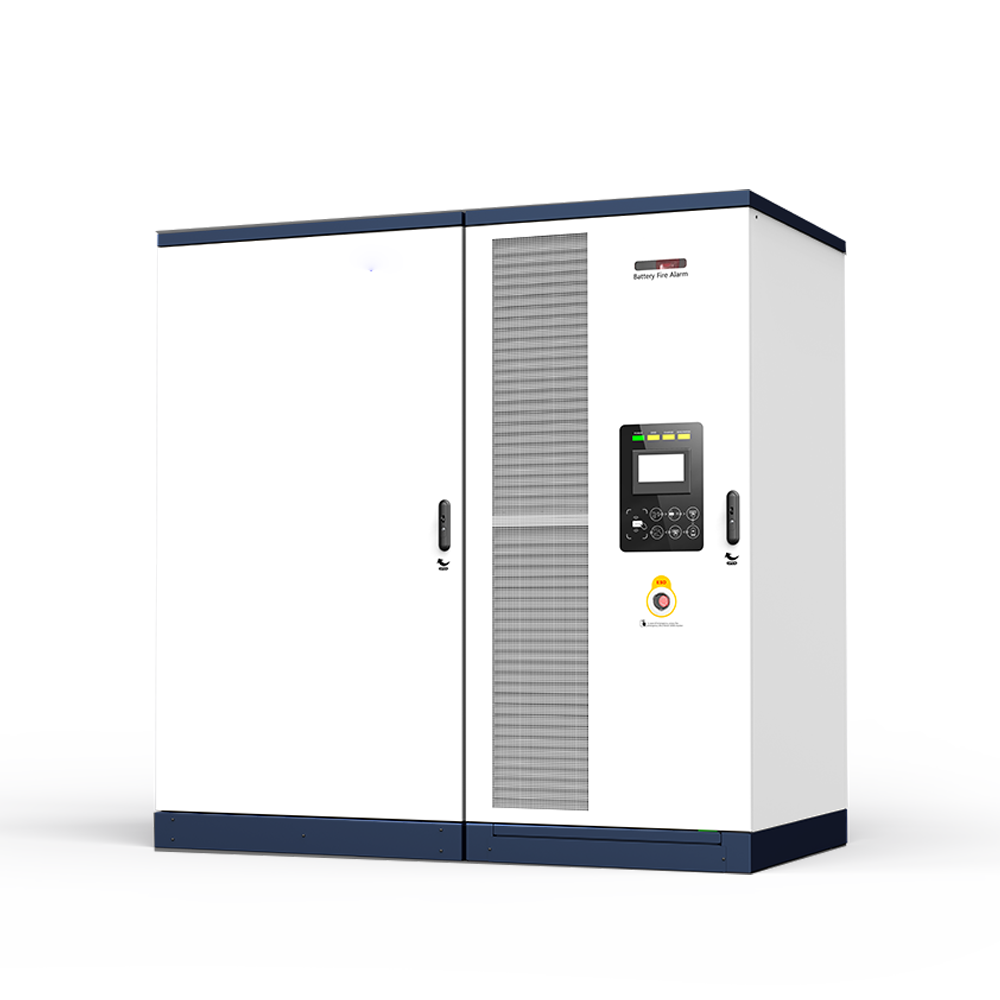

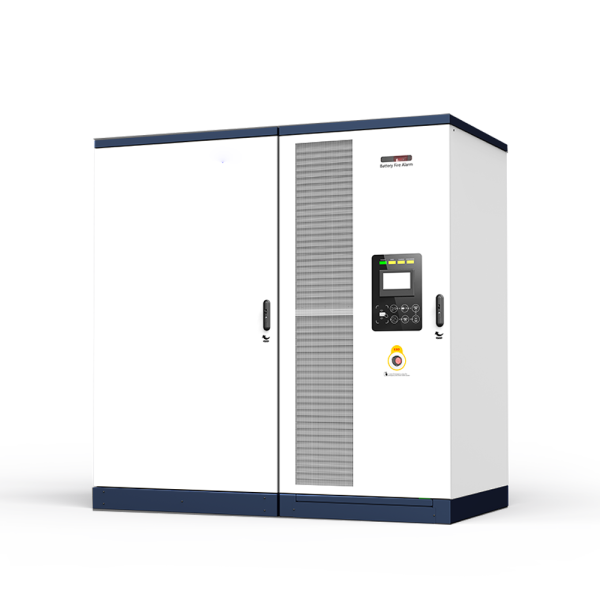

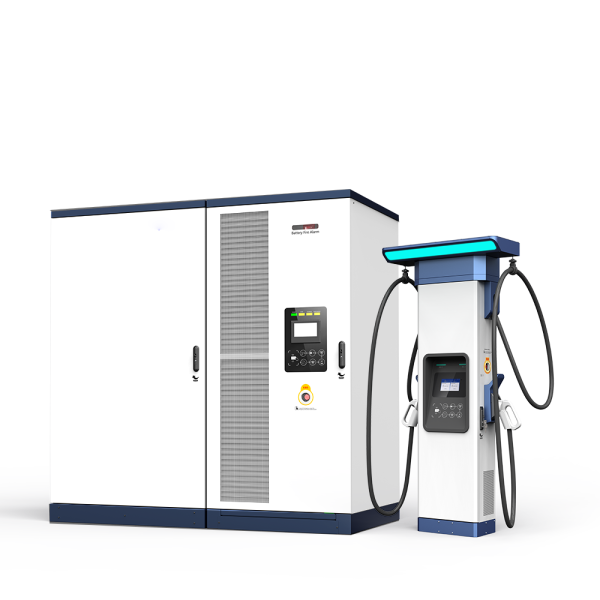

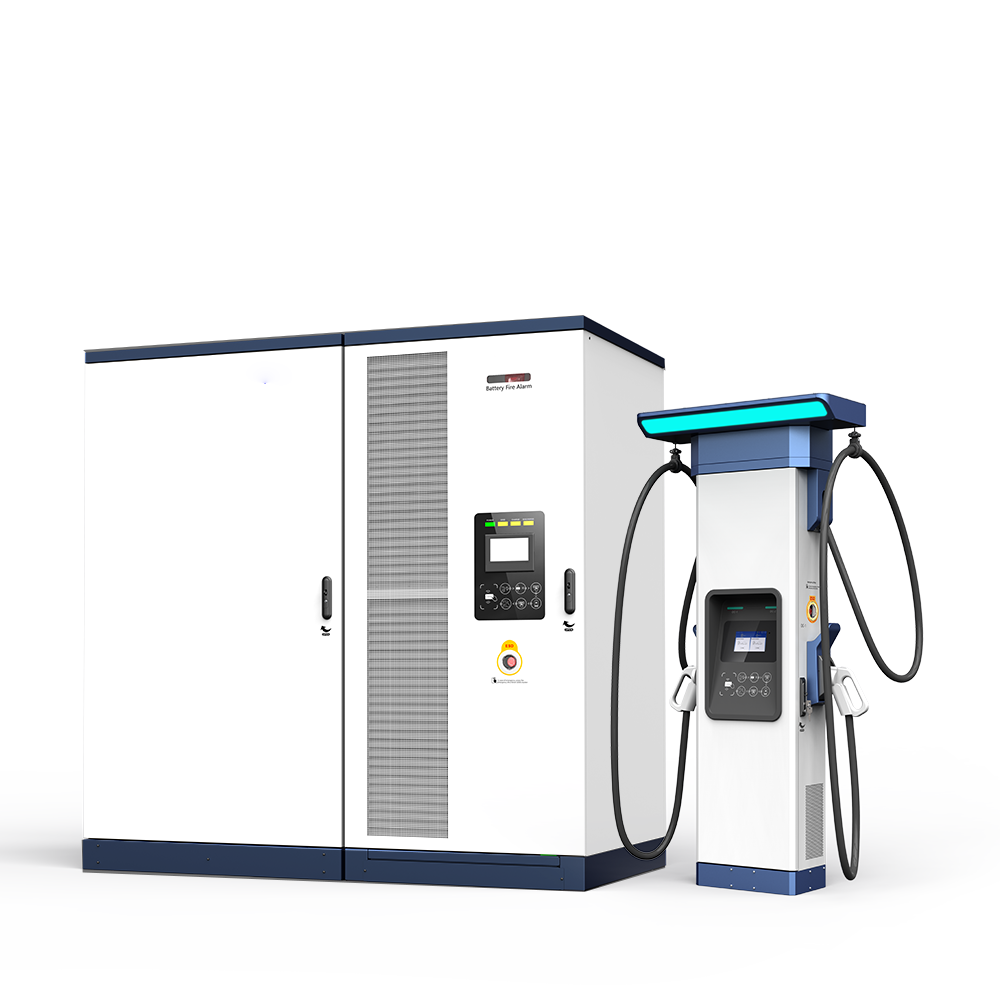

| IHS540K2 540kW Power Cube | IHS540K2 540kW Power Cube |
|---|
| AC grid access | AC input voltage: 45-65Hz/3-phase+(N)+PE/260Vac-530Vac
AC max input power: Max 360kW
AC distribution: AC grid charging power to energy storage battery is max 120kW, to EV is max 360kW |
|---|
| Energy storage battery access | Battery group access: 1 group
Battery capacity/group: 200kWh/280Ah/627V~806V/0.5C dis/charge/max 0.75C discharge 30 min
Battery charging power from AC grid: Max 4 * 30kW =120kW (4 *30kW ACDC power module configuration)
Battery discharging channel to EV: Max 6 channels
Battery B2V EV charging power: Max 6 * 30kW =180kW (6 *30kW DCDC power module configuration) |
|---|

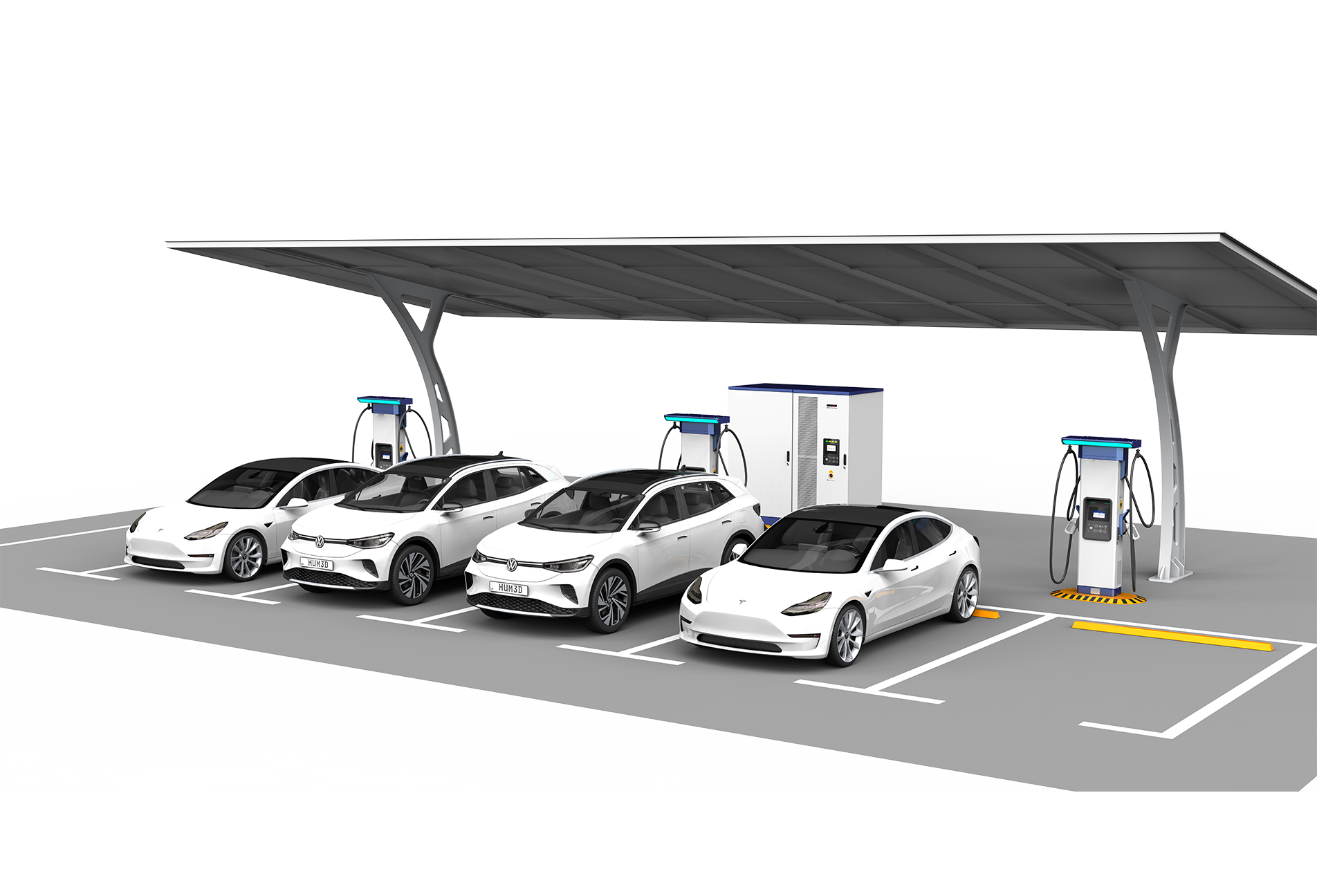

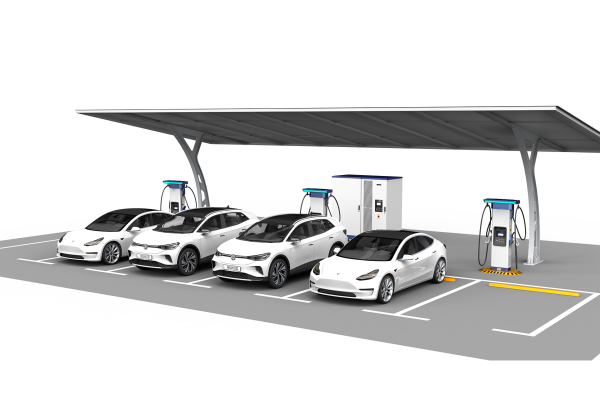

| Electric vehicle charging | EV charging point: Max 6 charging connectors, 3 dispensers with dual charging connectors
EV charging power: Max 360 kW (180kW from AC grid, 180kW from ES battery)
EV charging power transfer: Power switch among the power module groups to maximize the power efficiency
EV charging voltage: 150V~1000V |
|---|
| PV access | Access channel: 2 channels
Access power: Max 2 *30kW MPPT |
|---|
| Metering | AC grid side: 1 AC energy meter |
|---|
| HMI | 7 " TFT touch screen, 5 LED, E-STOP |
|---|
| Dimensions | W * H * D mm = 1000 * 2200 * 1150 mm, Weight: 550 + 18*22. 5kg = 955kg (full power modules) |
|---|
| DC power supply | Optional function, support 150V~1000V DC load (max 60kW) |
|---|
| Power module configuration (18 max) | MPPT DCDC: 0~2
Battery discharge DCDC: 2~6
Battery charge ACDC: 1~4
AC2EV charge ACDC: 1~8 |
|---|

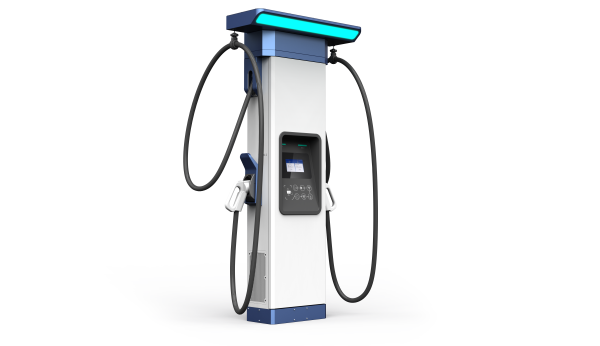

| Charging Dispenser | Charging Dispenser |
|---|
| EXP200/250 FDC | DC input
DC input voltage range: 150V~1000V
DC input channel: 2 channel DC bus
DC output
Output charging cable: 2
Output DC voltage range:150V~1000V
Max DC output current: 2 * 200A (opt 250A)
HMI: Tempered glass protective 7" capacitive touch screen LCD for stand floor dispenser, RGB panel LED, E-STOP, RFID, POS (opt)
Metering: DC energy meter, opt NMI Eichrecht certification configuration
Monitor: OCPP 1.6J, support update to 2.0, P&C, smart charge and power management support, LAN 100M and LTE wireless modem support
Cable management: Top assembly two cable retractors and light bar for stand floor dispenser. Select one or two cable retractors based on cable length for overhead dispenser
MBE function support: WEB side Maintenance Backend System enhances the operation and maintenance effectiveness
Charging protection:
Overcurrent/short circuit/overvoltage/undervoltage/RCD/insulation/overtemperature protection
Reverse polarity protection
Mechanical:
Dimensions: W*H*D mm 500*1800*260/185kg/IP55/IK10
Charging connector configuration: 2*GBT/CCS/NACS or CCS+NACS/GBT/CHAdeMO or 1*GBT/CCS/NACS/CHAdeMO
Charging connector capacity: GBT:250A (opt 400/600A) , CCS:200A (opt 250/300/375/500A), NACS:200A (opt 300A/380A) , CHA:125A (opt 200A)
Noise: 0 |
|---|
| EXP300-FDC | DC input
DC input voltage range: 150V~1000V
DC input channel: 2 channel DC bus
DC output
Output charging cable: 2
Output DC voltage range:150V~1000V
Max DC output current: 2 * 300A
HMI: Tempered glass protective 7" capacitive touch screen LCD for stand floor dispenser, RGB panel LED, E-STOP, RFID, POS (opt)
Metering: DC energy meter, opt NMI Eichrecht certification configuration
Monitor: OCPP 1.6J, support update to 2.0, P&C, smart charge and power management support, LAN 100M and LTE wireless modem support
Cable management: Top assembly two cable retractors and light bar for stand floor dispenser. Select one or two cable retractors based on cable length for overhead dispenser
MBE function support: WEB side Maintenance Backend System enhances the operation and maintenance effectiveness
Charging protection:
Overcurrent/short circuit/overvoltage/undervoltage/RCD/insulation/overtemperature protection
Reverse polarity protection
Mechanical:
Dimensions: W*H*D mm 500*1800*260/185kg/IP55/IK10
Charging connector configuration: 2*GBT/CCS/NACS or CCS+NACS/GBT/CHAdeMO or 1*GBT/CCS/NACS/CHAdeMO
Charging connector capacity: GBT:250A (opt 400/600A) , CCS:200A (opt 250/300/375/500A), NACS:200A (opt 300A/380A) , CHA:125A (opt 200A)
Noise: 0 |
|---|
| EXP400-FDC | DC input
DC input voltage range: 150V~1000V
DC input channel: 2 channel DC bus
DC output
Output charging cable: 2
Output DC voltage range:150V~1000V
Max DC output current: 2 * 375A
HMI: Tempered glass protective 7" capacitive touch screen LCD for stand floor dispenser, RGB panel LED, E-STOP, RFID, POS (opt)
Metering: DC energy meter, opt NMI Eichrecht certification configuration
Monitor: OCPP 1.6J, support update to 2.0, P&C, smart charge and power management support, LAN 100M and LTE wireless modem support
Cable management: Top assembly two cable retractors and light bar for stand floor dispenser. Select one or two cable retractors based on cable length for overhead dispenser
MBE function support: WEB side Maintenance Backend System enhances the operation and maintenance effectiveness
Charging protection:
Overcurrent/short circuit/overvoltage/undervoltage/RCD/insulation/overtemperature protection
Reverse polarity protection
Mechanical:
Dimensions: W*H*D mm 500*1800*260/185kg/IP55/IK10
Charging connector configuration: 2*GBT/CCS/NACS or CCS+NACS/GBT/CHAdeMO or 1*GBT/CCS/NACS/CHAdeMO
Charging connector capacity: GBT:250A (opt 400/600A) , CCS:200A (opt 250/300/375/500A), NACS:200A (opt 300A/380A) , CHA:125A (opt 200A)
Noise: 0 |
|---|
| EXP500-LDC/LLDC | DC input
DC input voltage range: 150V~1000V
DC input channel: 2 channel DC bus
DC output
Output charging cable: 2
Output DC voltage range:150V~1000V
Max DC output current: 500A+200A
HMI: Tempered glass protective 7" capacitive touch screen LCD for stand floor dispenser, RGB panel LED, E-STOP, RFID, POS (opt)
Metering: DC energy meter, opt NMI Eichrecht certification configuration
Monitor: OCPP 1.6J, support update to 2.0, P&C, smart charge and power management support, LAN 100M and LTE wireless modem support
Cable management: Top assembly two cable retractors and light bar for stand floor dispenser. Select one or two cable retractors based on cable length for overhead dispenser
MBE function support: WEB side Maintenance Backend System enhances the operation and maintenance effectiveness
Charging protection:
Overcurrent/short circuit/overvoltage/undervoltage/RCD/insulation/overtemperature protection
Reverse polarity protection
Mechanical:
Dimensions: 500*1800*260/195kg/IP55/IK10
Charging connector configuration: 2*GBT/CCS/NACS or CCS+NACS/GBT/CHAdeMO or 1*GBT/CCS/NACS/CHAdeMO
Charging connector capacity: GBT:250A (opt 400/600A) , CCS:200A (opt 250/300/375/500A), NACS:200A (opt 300A/380A) , CHA:125A (opt 200A)
Noise: 60 dB |
|---|
| IBS200K1KC 200kWh Battery Cube | Energy storage battery: 200kWh/280Ah energy storage battery, battery voltage: 627V~806V, charging/ discharging ratio: 0.5 C dis/charge, max 0.75 C discharge 30 min
High voltage control box: Infypower high voltage control box
Battery BMS Infypower: 2 level BMS structure: battery pack BSU + high voltage control box BMU
Thermal management: Industrial outdoor cool/heat air conditioner, intelligent partitioned thermal management
Fire suppression system: Temperature-activated fire extinguishing system + fire proble tube + air pressure sensor and valves, emergency fan
Safety sensor: Door access seneor + smoke detector + harmful gas detector
Envirement sensor: Water sensor + temperature sensor + humidity sensor
Protection class: IP55
Dimensions: W * H * D mm = 1200 * 2200 * 1200 mm
Weight: 1600 kg (with battery) |
|---|
