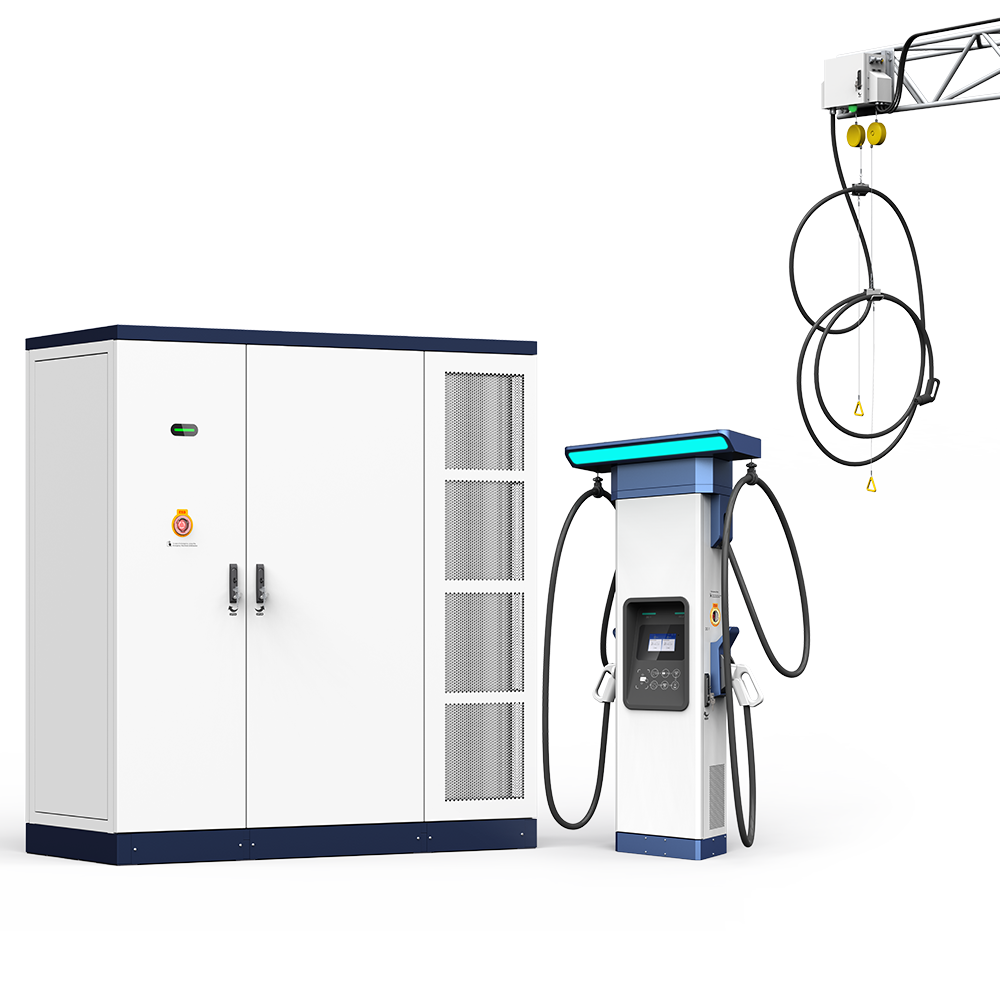

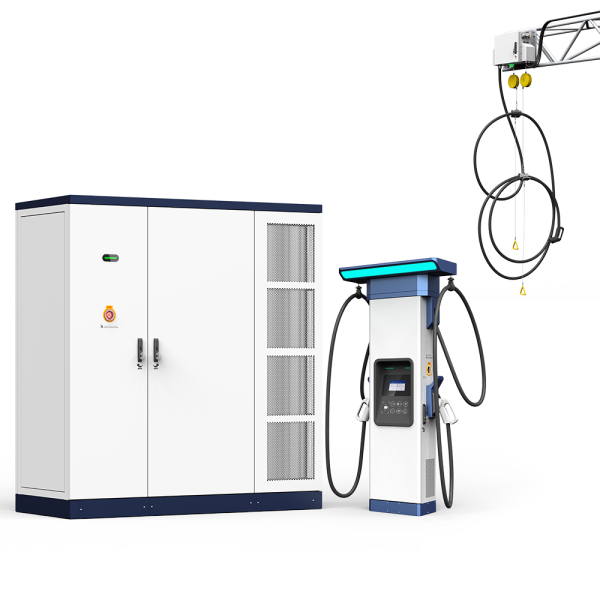

| Power Cube | Power Cube |
|---|
| AC input | AC input frequency/voltage: 45-65Hz/ 3-phase+(N)+PE / 260Vac-530Vac
AC max input current: 2*480A@380Vac
Power factor: >0.99
Total harmonic current: <5% (rated input ) |
|---|
| DC output | Output DC voltage range: 150V-1000V
Max DC output power: 600kW@300V~1000V
DC output current: Max 500A for each output charging channel, opt Max 300A for each output charging channel
Max system efficiency: >96% (rated input and output)
Output channel: Max 10 charging channels as the input of the charging dispensers
Dispenser support: Max 5 dual-connectors dispensers or 10 single-connector dispensers |
|---|
| HMI | RGB LED, E-STOP |
|---|
| Mechanical | Dimensions: W * H * D mm = 2000 * 2200 * 850 mm
Weight: 1200kg + 20 * 30kg = 1800 kg (full power modules and full liquid) |
|---|
| Protection class | IP65 (excluding heat exchange chamber) |
|---|
| Noise | <55dB (@25°C, rated input and output ), max noise <60dB |
|---|
| Power switch | Intelligent power switch among the power module groups, can switch to each output channel to maximize the power efficiency |
|---|
| Power module | Max 20 module slots: LRG1K0100G 30kW/1000V liquid cooled power module |
|---|
| Charging Dispenser-Stand Floor Dispenser | Stand Floor Dispenser |
|---|
| EXP200/250 FDC | DC input
DC input voltage range: 150V~1000V
DC input channel: 2 channel DC bus
DC output
Output charging cable: 2
Output DC voltage range: 150V~1000V
Max DC output current: 2 * 200A (opt 250A)
HMI: Tempered glass protective 7" capacitive touch screen LCD for stand floor dispenser, RGB panel LED, E-STOP, RFID, POS (opt)
Metering: DC energy meter, opt NMI Eichrecht certification configuration
Monitor: OCPP 1.6J, support update to 2.0, P&C, smart charge and power management support, LAN 100M and LTE wireless modem support
Cable management: Top assembly two cable retractors and light bar for stand floor dispenser. Select one or two cable retractors based on cable length for overhead dispenser
MBE function support: WEB side Maintenance Backend System enhances the operation and maintenance effectiveness
Charging protection:
Overcurrent/short circuit/overvoltage/undervoltage/RCD/insulation/overtemperature protection
Reverse polarity protection
Mechanical:
Dimensions: W*H*D mm 500*1800*260/185kg/IP55/IK10
Charging connector configuration: 2*GBT/CCS/NACS or CCS+NACS/GBT/CHAdeMO or 1*GBT/CCS/NACS/CHAdeMO CCS or GBT or NACS
Charging connector capacity: GBT:250A (opt 400/600A) , CCS:200A (opt 250/300/375/500A), NACS:200A (opt 300A/380A) , CHA:125A (opt 200A)
Noise: 0 |
|---|
| EXP300-FDC | DC input
DC input voltage range: 150V~1000V
DC input channel: 2 channel DC bus
DC output
Output charging cable: 2
Output DC voltage range: 150V~1000V
Max DC output current: 2*300A
HMI: Tempered glass protective 7" capacitive touch screen LCD for stand floor dispenser, RGB panel LED, E-STOP, RFID, POS (opt)
Metering: DC energy meter, opt NMI Eichrecht certification configuration
Monitor: OCPP 1.6J, support update to 2.0, P&C, smart charge and power management support, LAN 100M and LTE wireless modem support
Cable management: Top assembly two cable retractors and light bar for stand floor dispenser. Select one or two cable retractors based on cable length for overhead dispenser
MBE function support: WEB side Maintenance Backend System enhances the operation and maintenance effectiveness
Charging protection:
Overcurrent/short circuit/overvoltage/undervoltage/RCD/insulation/overtemperature protection
Reverse polarity protection
Mechanical:
Dimensions: W*H*D mm 500*1800*260/185kg/IP55/IK10
Charging connector configuration: 2*GBT/CCS/NACS or CCS+NACS/GBT/CHAdeMO or 1*GBT/CCS/NACS/CHAdeMO CCS or GBT or NACS
Charging connector capacity: GBT:250A (opt 400/600A) , CCS:200A (opt 250/300/375/500A), NACS:200A (opt 300A/380A) , CHA:125A (opt 200A)
Noise: 0 |
|---|
| EXP400-FDC | DC input
DC input voltage range: 150V~1000V
DC input channel: 2 channel DC bus
DC output
Output charging cable: 2
Output DC voltage range: 150V~1000V
Max DC output current: 2*375A
HMI: Tempered glass protective 7" capacitive touch screen LCD for stand floor dispenser, RGB panel LED, E-STOP, RFID, POS (opt)
Metering: DC energy meter, opt NMI Eichrecht certification configuration
Monitor: OCPP 1.6J, support update to 2.0, P&C, smart charge and power management support, LAN 100M and LTE wireless modem support
Cable management: Top assembly two cable retractors and light bar for stand floor dispenser. Select one or two cable retractors based on cable length for overhead dispenser
MBE function support: WEB side Maintenance Backend System enhances the operation and maintenance effectiveness
Charging protection:
Overcurrent/short circuit/overvoltage/undervoltage/RCD/insulation/overtemperature protection
Reverse polarity protection
Mechanical:
Dimensions: W*H*D mm 500*1800*260/185kg/IP55/IK10
Charging connector configuration: 2*GBT/CCS/NACS or CCS+NACS/GBT/CHAdeMO or 1*GBT/CCS/NACS/CHAdeMO CCS or GBT or NACS
Charging connector capacity: GBT:250A (opt 400/600A) , CCS:200A (opt 250/300/375/500A), NACS:200A (opt 300A/380A) , CHA:125A (opt 200A)
Noise: 0 |
|---|
| EXP500-LDC/LLDC | DC input
DC input voltage range: 150V~1000V
DC input channel: 2 channel DC bus
DC output
Output charging cable: 2
Output DC voltage range: 150V~1000V
Max DC output current: 500A + opt 200A/300A/375A/500A
HMI: Tempered glass protective 7" capacitive touch screen LCD for stand floor dispenser, RGB panel LED, E-STOP, RFID, POS (opt)
Metering: DC energy meter, opt NMI Eichrecht certification configuration
Monitor: OCPP 1.6J, support update to 2.0, P&C, smart charge and power management support, LAN 100M and LTE wireless modem support
Cable management: Top assembly two cable retractors and light bar for stand floor dispenser. Select one or two cable retractors based on cable length for overhead dispenser
MBE function support: WEB side Maintenance Backend System enhances the operation and maintenance effectiveness
Charging protection:
Overcurrent/short circuit/overvoltage/undervoltage/RCD/insulation/overtemperature protection
Reverse polarity protection
Mechanical:
Dimensions: 500*1800*260/195kg/IP55/IK10
Charging connector configuration: 2*GBT/CCS/NACS or CCS+NACS/GBT/CHAdeMO or 1*GBT/CCS/NACS/CHAdeMO CCS or GBT or NACS
Charging connector capacity: GBT:250A (opt 400/600A) , CCS:200A (opt 250/300/375/500A), NACS:200A (opt 300A/380A) , CHA:125A (opt 200A)
Noise: 55dB |
|---|
| Charging Dispenser-Overhead Dispenser | Overhead Dispenser |
|---|
| EXP250/300-FSW | DC input
DC input voltage range: 150V~1000V
DC input channel: 1 channel DC bus
DC output
Output charging cable: 1
Output DC voltage range: 150V~1000V
Max DC output current: 200A (opt 250A/300A)
HMI: Tempered glass protective 7" capacitive touch screen LCD for stand floor dispenser, RGB panel LED, E-STOP, RFID, POS (opt)
Metering: DC energy meter, opt NMI Eichrecht certification configuration
Monitor: OCPP 1.6J, support update to 2.0, P&C, smart charge and power management support, LAN 100M and LTE wireless modem support
Cable management: Top assembly two cable retractors and light bar for stand floor dispenser. Select one or two cable retractors based on cable length for overhead dispenser
MBE function support: WEB side Maintenance Backend System enhances the operation and maintenance effectiveness
Charging protection:
Overcurrent/short circuit/overvoltage/undervoltage/RCD/insulation/overtemperature protection
Reverse polarity protection
Mechanical:
Dimensions: 763*415*240/50kg/IP65
Charging connector configuration: 2*GBT/CCS/NACS or CCS+NACS/GBT/CHAdeMO or 1*GBT/CCS/NACS/CHAdeMO CCS or GBT or NACS
Charging connector capacity: GBT:250A (opt 400/600A) , CCS:200A (opt 250/300/375/500A), NACS:200A (opt 300A/380A) , CHA:125A (opt 200A)
Noise: 0 |
|---|
| Standard | Charging standard: GBT 27930-2011 and 27930-2015, CHAdeMO V1.2/V2.0, DIN70121 and ISO15118, OCA
EMC/safety: CE/RED/CB; EN 61851-21-2/EN 61000-6-4/EN 61000-6-2 Class A; EN 61851-1/EN 61851-23/EN 61851-24 |
|---|
| Working Environment | Ambient temperature: Working temperature range -30~+70°C, full load temperature range -25~+50°C, power derating 5%/°C above 50°C
Storage temperature: -40~+75°C
Working humidity: 0 ~ 95%
Working altitude: 2000 m |
|---|
