600kW Air Cooled Split Type High Power Charger

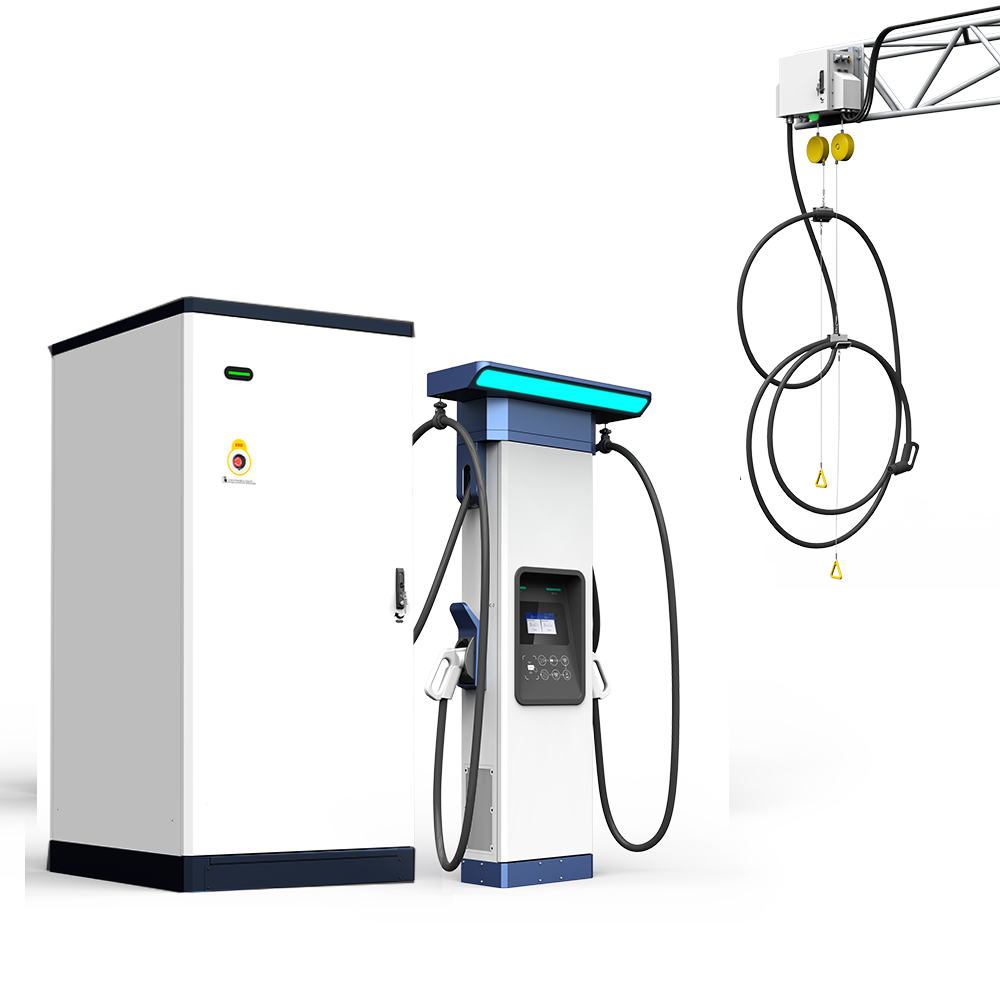

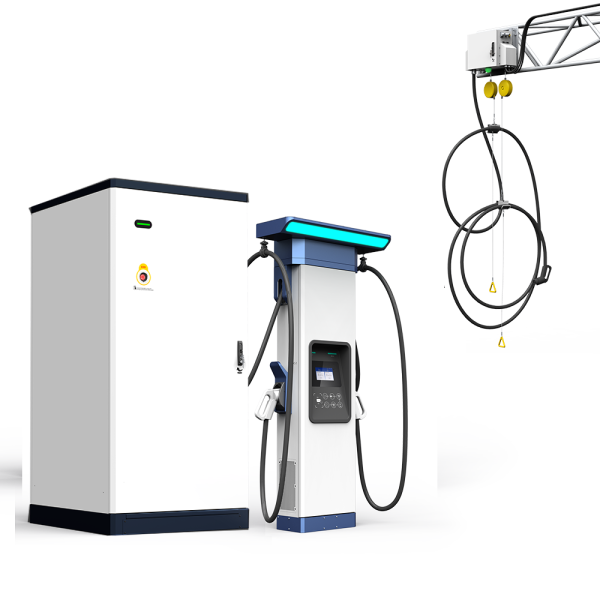

 EXP600K3-FWR5 Split type high power charger is specially designed for the EV charger operators with split and multi charging point applications. It supports CCS/NACS/CHAdeMO/GBT compatible charging connectors, 600kW high power output and max 12 charging connectors with 6 dual-connector dispensers or 12 single-connector dispensers. It also supports 500A liquid cooled charging connector with full power. Intelligent power switching matrix can realize the power modules power switch between the charging connectors to maximize the power using efficiency. The overhead dispenser for the bus station solution is also available with the same power cube.

Description

EXP600K3 600kW Power Cube/12 Charging Connectors, Overhead Charging Dispenser Solution

Additional information

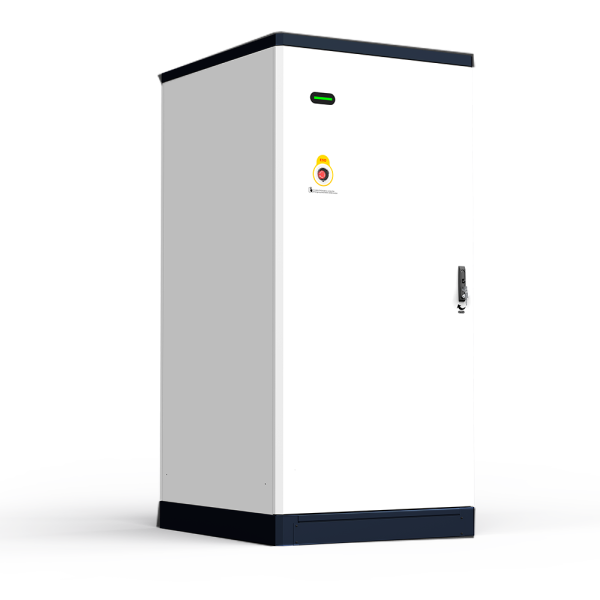

Power Cube

Power Cube

AC input

AC input frequency/voltage: 45-65Hz/ 3-phase+(N)+PE /260Vac-530Vac
AC max input current: CE: 2*480A@380Vac/UL:2*380A@480Vac
Power factor: >0.99
Total harmonic current:<5% (rated input)

DC output

Output DC voltage range: 150V-1000V
Max DC output power: 600kW@300V~1000V
DC output current: Max 500A for each output charging channel, opt Max 300A for each output charging channel
Max system efficiency: >95.5% (rated input and output)
Output channel: Max 12 output charging channels as the input of the charging dispensers
Dispenser support: Max 6 dual-connectors dispensers or 12 single-connector dispensers

HMI

RGB LED, E-STOP

Mechanical

Dimensions: W * H * D mm = 1050 * 2200 * 1150 mm
Weight: 690kg + 20 * 15.5kg = 1000 kg (full power modules)

Protection class

IP54

Noise

<60dB (@25°C, rated input and output ), max noise < 65dB

Power switch

Power can switch among the power module groups to each output channel to maximize the power efficiency

Power module

Max 20 module slots: REG1K0100G2 30kW/1000V power module

HMI kiosk（opt）

Tempered glass protective 10" capacitive touch screen LCD, RFID, POS (opt)

Manufacture

BABA support

Charging Dispenser-Stand Floor Dispenser

Stand Floor Dispenser

EXP200/250 FDC

DC input
DC input voltage range: 150V~1000V
DC input channel: 2 channel DC bus
DC output
Output charging cable: 2
Output DC voltage range: 150V~1000V
Max DC output current: 2 * 200A (opt 250A)
HMI: Tempered glass protective 7" capacitive touch screen LCD for stand floor dispenser, RGB panel LED, E-STOP, RFID, POS (opt)
Metering: DC energy meter, GB/T 29318 and JJG1149 standard, optional MID meter
Monitor: OCPP 1.6J, support update to 2.0, P&C, smart charge and power management support, LAN 100M and LTE wireless modem support
Cable management: Top assembly two cable retractors and light bar for stand floor dispenser. Select one or two cable retractors based on cable length for overhead dispenser
MBE function support: WEB side Maintenance Backend System enhances the operation and maintenance effectiveness
Charging protection:
Overcurrent/short circuit/overvoltage/undervoltage/RCD/insulation/overtemperature protection
Reverse polarity protection
Mechanical:
Dimensions: W*H*D mm 500*1800*260/185kg/IP55/IK10
Charging connector configuration: 2*GBT/CCS/NACS or CCS+NACS/GBT/CHAdeMO or 1*GBT/CCS/NACS/CHAdeMO CCS or GBT or NACS
Charging connector capacity: GBT:250A (opt 400/500A) , CCS:200A (opt 250/300/375/500A), NACS:200A (opt 300A/380A) , CHA:125A (opt 200A)
Noise: 0

EXP300-FDC

DC input
DC input voltage range: 150V~1000V
DC input channel: 2 channel DC bus
DC output
Output charging cable: 2
Output DC voltage range: 150V~1000V
Max DC output current: 2 * 300A
HMI: Tempered glass protective 7" capacitive touch screen LCD for stand floor dispenser, RGB panel LED, E-STOP, RFID, POS (opt)
Metering: DC energy meter, GB/T 29318 and JJG1149 standard, optional MID meter
Monitor: OCPP 1.6J, support update to 2.0, P&C, smart charge and power management support, LAN 100M and LTE wireless modem support
Cable management: Top assembly two cable retractors and light bar for stand floor dispenser. Select one or two cable retractors based on cable length for overhead dispenser
MBE function support: WEB side Maintenance Backend System enhances the operation and maintenance effectiveness
Charging protection:
Overcurrent/short circuit/overvoltage/undervoltage/RCD/insulation/overtemperature protection
Reverse polarity protection
Mechanical:
Dimensions: W*H*D mm 500*1800*260/185kg/IP55/IK10
Charging connector configuration: 2*GBT/CCS/NACS or CCS+NACS/GBT/CHAdeMO or 1*GBT/CCS/NACS/CHAdeMO CCS or GBT or NACS
Charging connector capacity: GBT:250A (opt 400/500A) , CCS:200A (opt 250/300/375/500A), NACS:200A (opt 300A/380A) , CHA:125A (opt 200A)
Noise: 0

EXP400-FDC

DC input
DC input voltage range: 150V~1000V
DC input channel: 2 channel DC bus
DC output
Output charging cable: 2
Output DC voltage range: 150V~1000V
Max DC output current: 2 * 375A
HMI: Tempered glass protective 7" capacitive touch screen LCD for stand floor dispenser, RGB panel LED, E-STOP, RFID, POS (opt)
Metering: DC energy meter, GB/T 29318 and JJG1149 standard, optional MID meter
Monitor: OCPP 1.6J, support update to 2.0, P&C, smart charge and power management support, LAN 100M and LTE wireless modem support
Cable management: Top assembly two cable retractors and light bar for stand floor dispenser. Select one or two cable retractors based on cable length for overhead dispenser
MBE function support: WEB side Maintenance Backend System enhances the operation and maintenance effectiveness
Charging protection:
Overcurrent/short circuit/overvoltage/undervoltage/RCD/insulation/overtemperature protection
Reverse polarity protection
Mechanical:
Dimensions: W*H*D mm 500*1800*260/185kg/IP55/IK10
Charging connector configuration: 2*GBT/CCS/NACS or CCS+NACS/GBT/CHAdeMO or 1*GBT/CCS/NACS/CHAdeMO CCS or GBT or NACS
Charging connector capacity: GBT:250A (opt 400/500A) , CCS:200A (opt 250/300/375/500A), NACS:200A (opt 300A/380A) , CHA:125A (opt 200A)
Noise: 0

EXP500-LDC/LLDC

DC input
DC input voltage range: 150V~1000V
DC input channel: 2 channel DC bus
DC output
Output charging cable: 2
Output DC voltage range: 150V~1000V
Max DC output current: 500A + opt 200A/300A/375A/500A
HMI: Tempered glass protective 7" capacitive touch screen LCD for stand floor dispenser, RGB panel LED, E-STOP, RFID, POS (opt)
Metering: DC energy meter, GB/T 29318 and JJG1149 standard, optional MID meter
Monitor: OCPP 1.6J, support update to 2.0, P&C, smart charge and power management support, LAN 100M and LTE wireless modem support
Cable management: Top assembly two cable retractors and light bar for stand floor dispenser. Select one or two cable retractors based on cable length for overhead dispenser
MBE function support: WEB side Maintenance Backend System enhances the operation and maintenance effectiveness
Charging protection:
Overcurrent/short circuit/overvoltage/undervoltage/RCD/insulation/overtemperature protection
Reverse polarity protection
Mechanical:
Dimensions: 500*1800*260/195kg/IP55/IK10
Charging connector configuration: 2*GBT/CCS/NACS or CCS+NACS/GBT/CHAdeMO or 1*GBT/CCS/NACS/CHAdeMO CCS or GBT or NACS
Charging connector capacity: GBT:250A (opt 400/500A) , CCS:200A (opt 250/300/375/500A), NACS:200A (opt 300A/380A) , CHA:125A (opt 200A)
Noise: 55dB

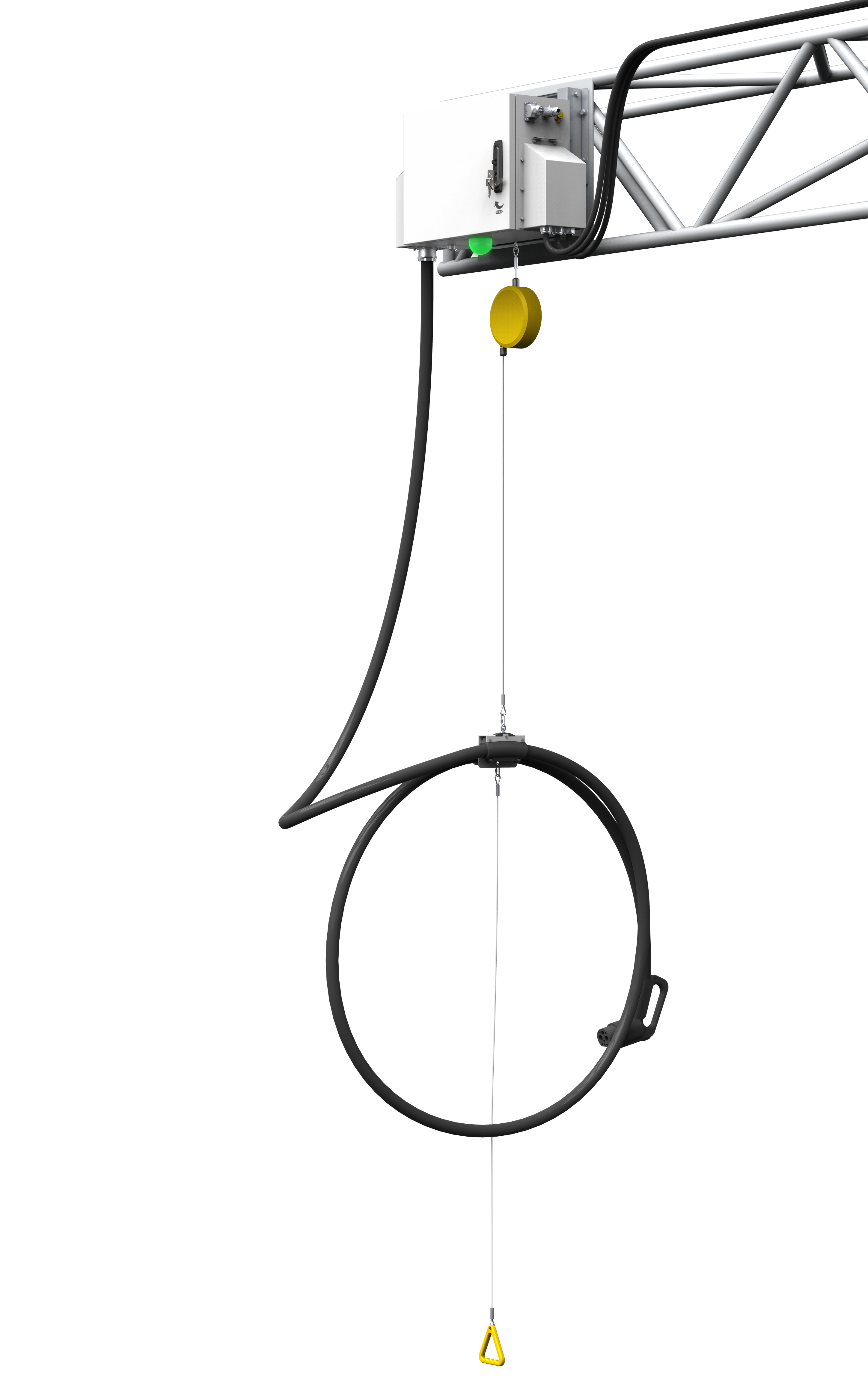

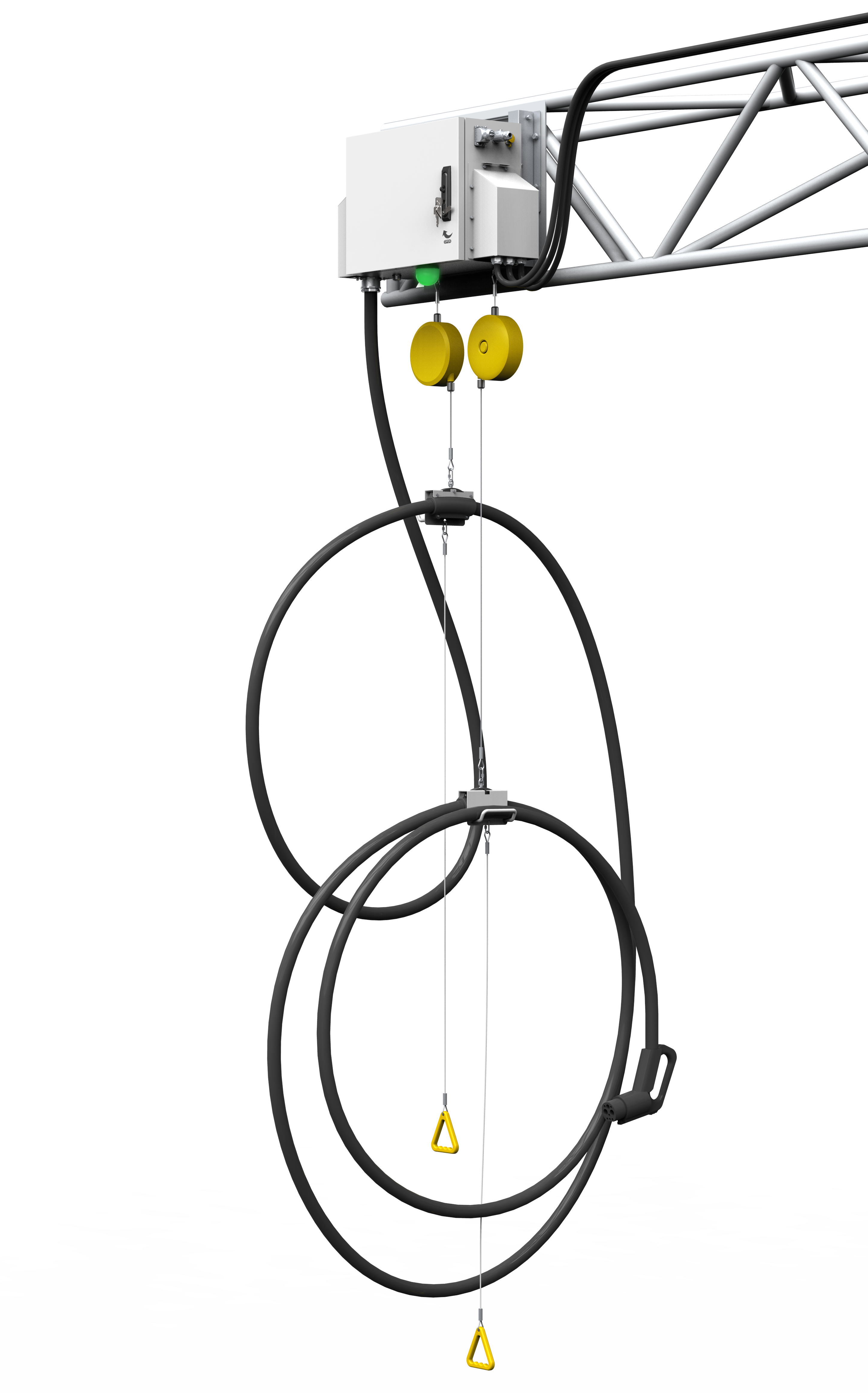

Charging Dispenser-Overhead Dispenser

Overhead Dispenser

EXP250/300-FSW

DC input
DC input voltage range: 150V~1000V
DC input channel: 1 channel DC bus
DC output
Output charging cable: 1
Output DC voltage range: 150V~1000V
Max DC output current: 200A (opt 250A/300A)
HMI: Tempered glass protective 7" capacitive touch screen LCD for stand floor dispenser, RGB panel LED, E-STOP, RFID, POS (opt)
Metering: DC energy meter, GB/T 29318 and JJG1149 standard, optional MID meter
Monitor: OCPP 1.6J, support update to 2.0, P&C, smart charge and power management support, LAN 100M and LTE wireless modem support
Cable management: Top assembly two cable retractors and light bar for stand floor dispenser. Select one or two cable retractors based on cable length for overhead dispenser
MBE function support: WEB side Maintenance Backend System enhances the operation and maintenance effectiveness
Charging protection:
Overcurrent/short circuit/overvoltage/undervoltage/RCD/insulation/overtemperature protection
Reverse polarity protection
Mechanical:
Dimensions: 763*415*240/50kg/IP65
Charging connector configuration: 2*GBT/CCS/NACS or CCS+NACS/GBT/CHAdeMO or 1*GBT/CCS/NACS/CHAdeMO CCS or GBT or NACS
Charging connector capacity: GBT:250A (opt 400/500A) , CCS:200A (opt 250/300/375/500A), NACS:200A (opt 300A/380A) , CHA:125A (opt 200A)
Noise: 0

Standard

Charging standard: GBT 27930-2011 and 27930-2015, CHAdeMO V1.2/V2.0, DIN70121 and ISO15118, OCA
EMC/safety: UL2202, CSA C22.2; CE/RED/CB; EN 61851-21-2/EN 61000-6-4/EN 61000-6-2 Class A; EN 61851-1/EN 61851-23/EN 61851-24

Working Environment

Ambient temperature: Working temperature range -30~+70°C, full load temperature range -25~+50°C, power derating 5%/°C above 50°C
Storage temperature: -40~+75°C
Working humidity: 0 ~ 95%
Working altitude: 2000 m
