60kW Fast DC Wallbox Charger

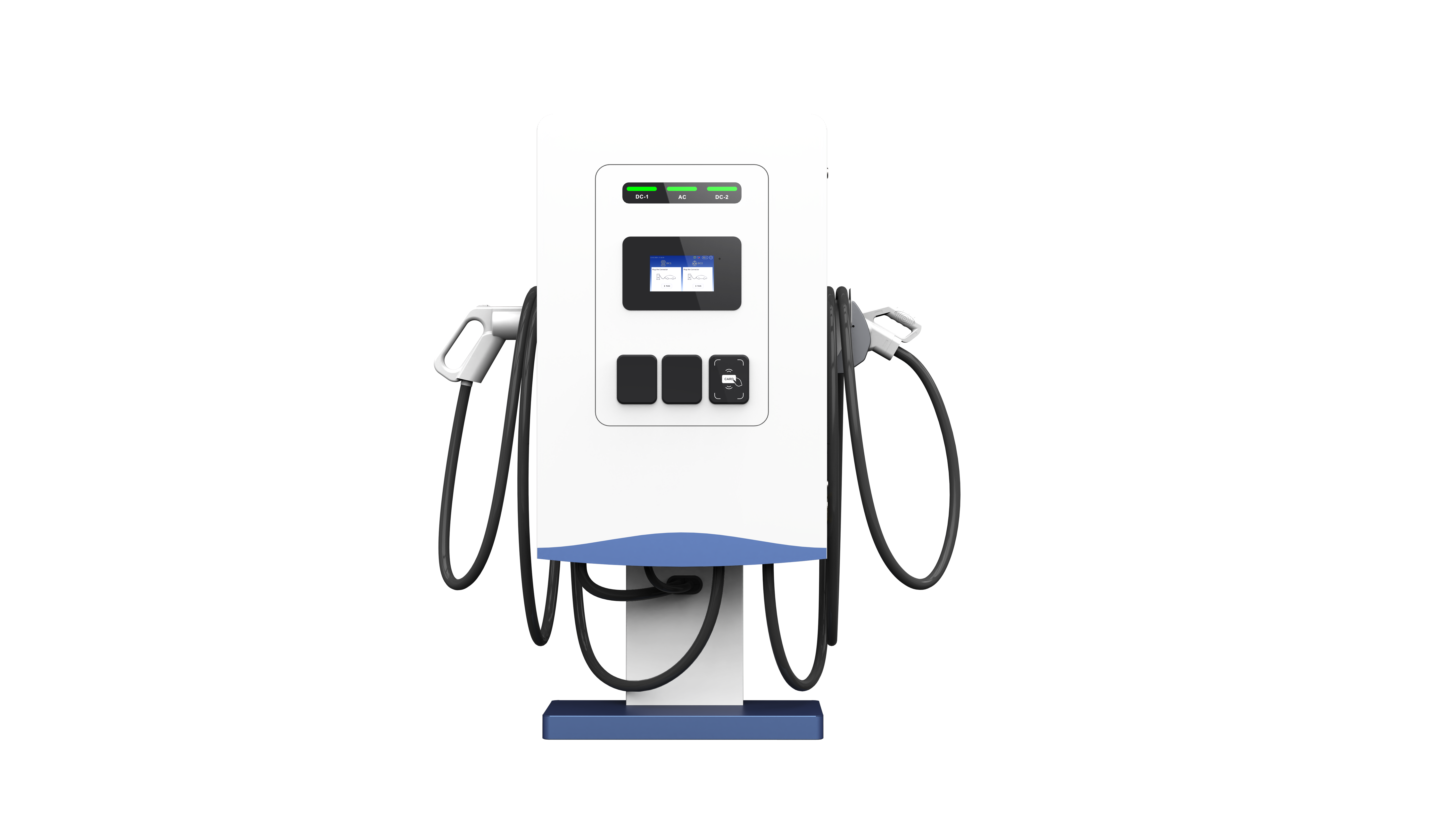

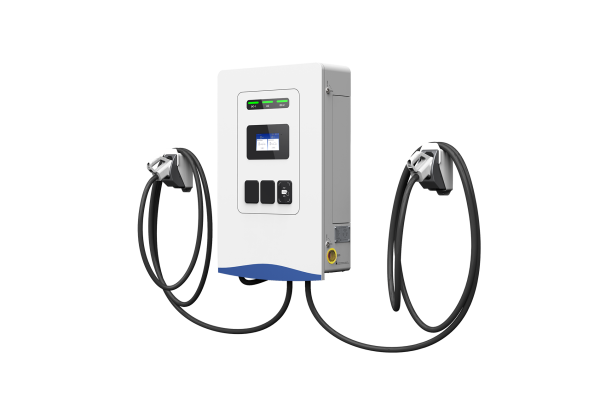

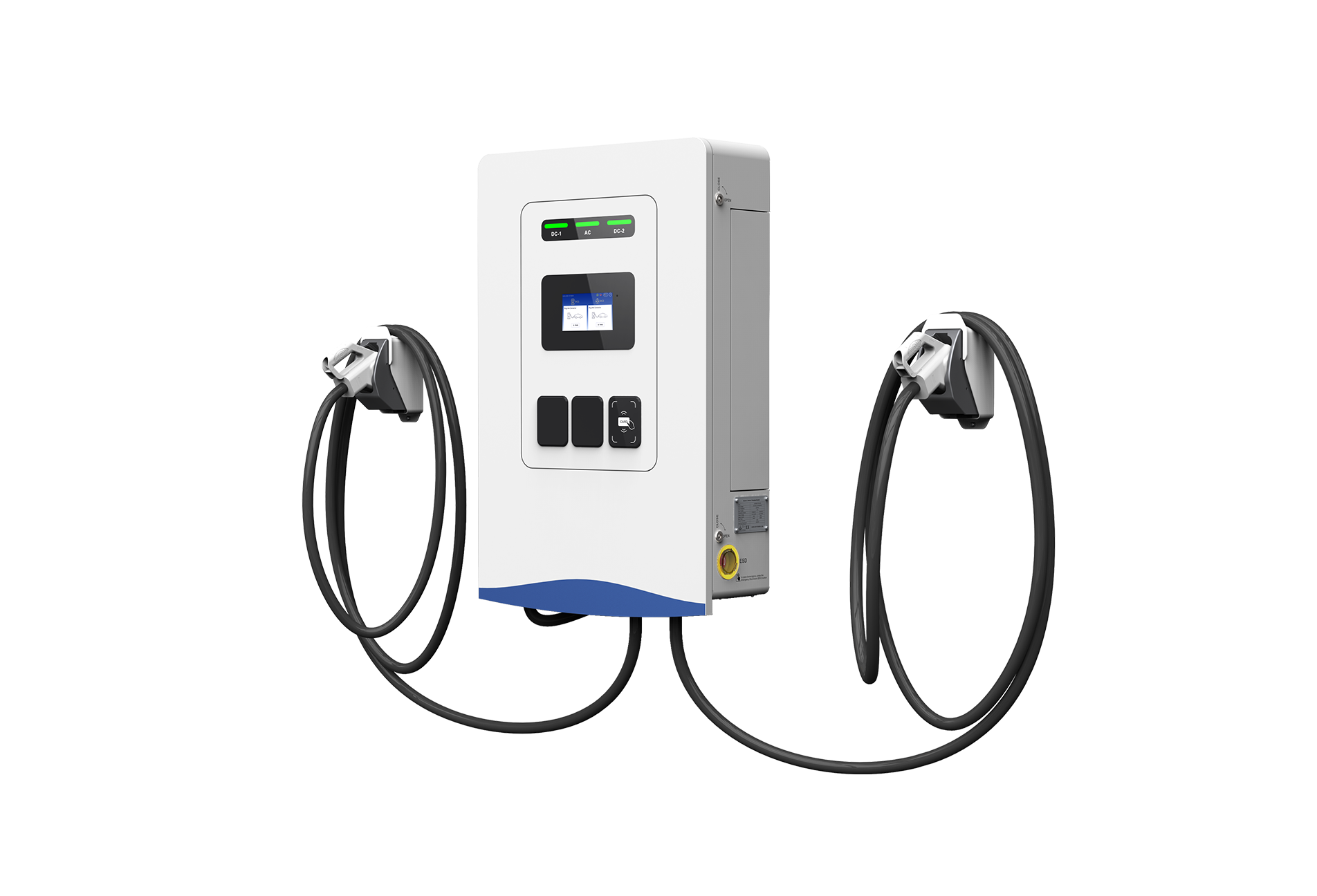

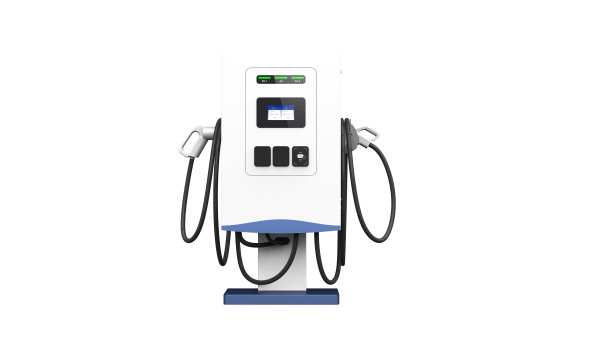

EXP60K3 DC charger is specially designed with wall mounted and pedestal installations and fully compatible with CCS/NACS/ CHAdeMO/GBT EV charging standard. It features small size, light weight and easy to install and move, user friendly interface, IP55 protection, robust and durable design for various outdoor applications. It can deliver up to 60kW charging power and 150V to 1000V charging voltage. It can be engineered with optional 22kW/32A AC Type 1 charging cable.

Description

EXP60K3 60kW DC Charging Power with Two DC Charging Connectors + (o) 22kW AC Type 1 Charging Cable

Additional information

Input Parameters	AC frequency: 45-65Hz AC voltage: CE: 3 phase+N+PE, 380/400Vac±10% UL: 3 phase+PE, 480Vac±10% Power factor: >0.99 Total harmonic current: <3% (rated input )
Output Parameters	Output DC: voltage range DC 150V-1000V Max DC: output current 200A Max DC: output power 60kW Constant power voltage range: 300~1000V Max system efficiency: >95% (rated input and output) Optional AC charging output: AC charging cable 32A/3P/22kW
Working Environment	Ambient temperature: -30~+70°C, full power output below 50°C, power derating 5%/°C above 50°C Storage temperature: -40~+75°C Working humidity: 0~95% Working altitude: 2000 m
Standard	Backend: OCPP 1.6J, support firmware update to 2.0x, OTA support, P&C/smart charge/power management support CCS PLC communication: DIN70121 and ISOI5118 CHAdeMO: CHAdeMO V1.2 GBT: GB/T 18487.1-2015, GB/T 27930-2015, GB/T 20234.1~3-2015 Certification: cTUVus, Energy Star, TUV CE, RED, CB, OCA UL 2202/CSA C22.2; EN IEC61851-21-2 Class B; EN IEC61851-1/EN IEC61851-23/EN 61851-24 Protection class: IP55/IK10 (touch screen IK08) Manufacture: BABA support
Function and Interface	HMI: Tempered glass protective 7" TFT touch screen LCD, RGB LED, EPO Metering: DC energy meter, DL/T645 standard, optional MID meter Monitor interface: LAN and LTE wireless modem support Charging mode: Auto basis, time basis, amount basis, energy basis, SOC basis Power switch mode: Two DC charging connectors charging in serial, AC Type 2 cable charging in parallel Payment: RFID, Mobile APP, POS (opt) MBE function support: WEB side Maintenance Backend System enhances the operation and maintenance effectiveness
Mechanical	Dimensions (WHD mm): 705 * 1100 * 240 mm Weight (kg): 120 kg
Charging Protection	Overcurrent protection, short circuit protection, overvoltage protection, undervoltage protection Insulation monitoring, protect earth connect monitoring Reverse polarity protection, overtemperature protection RCDB for AC charging cable configuration protection

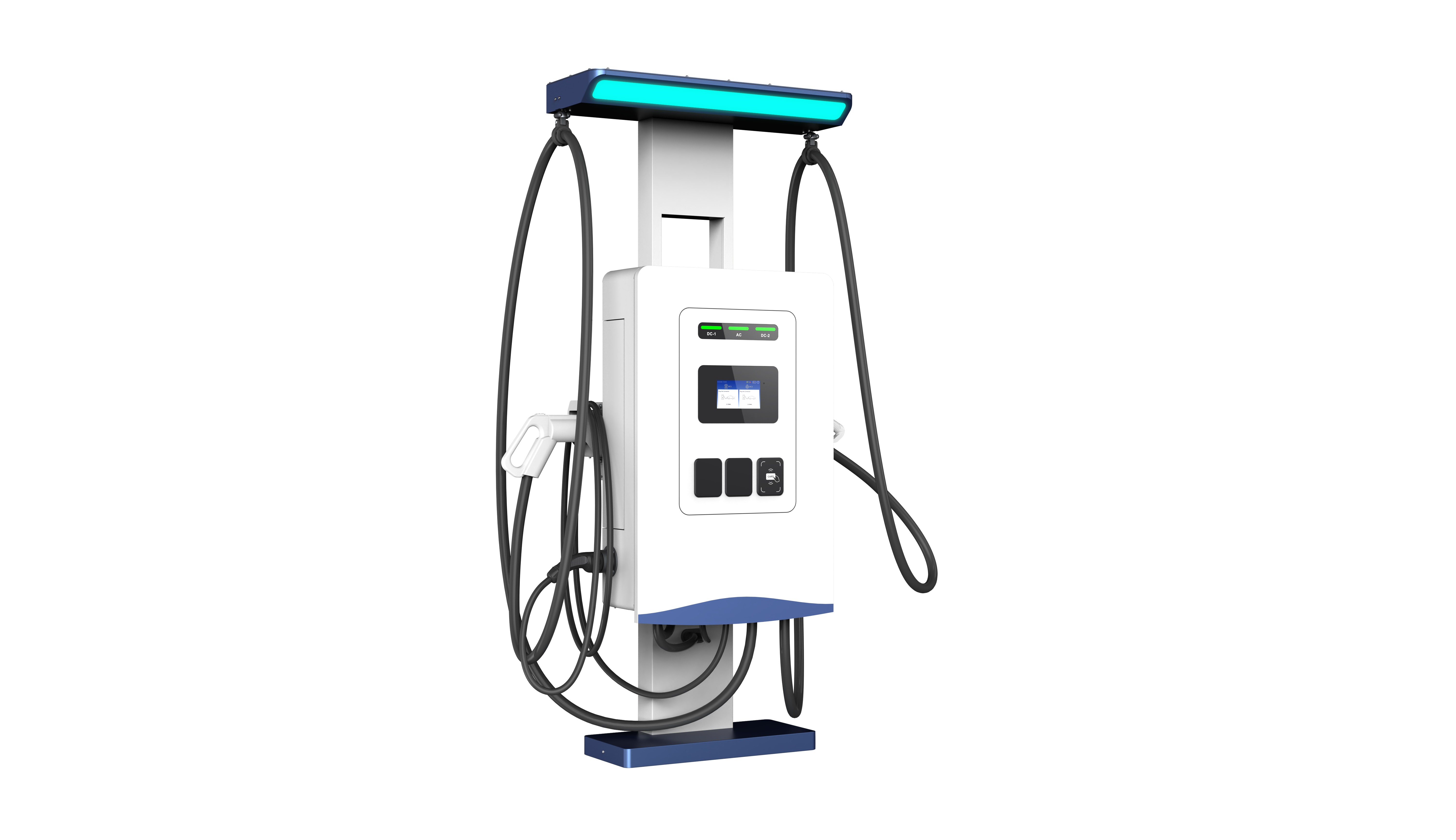

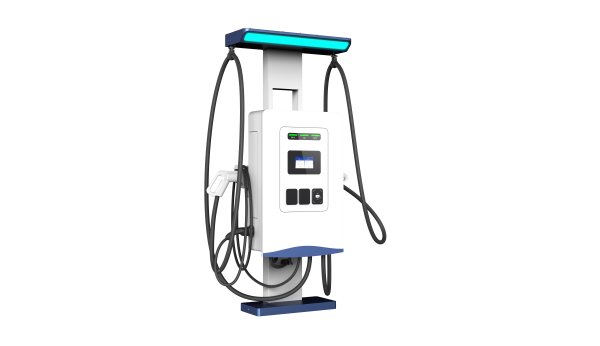

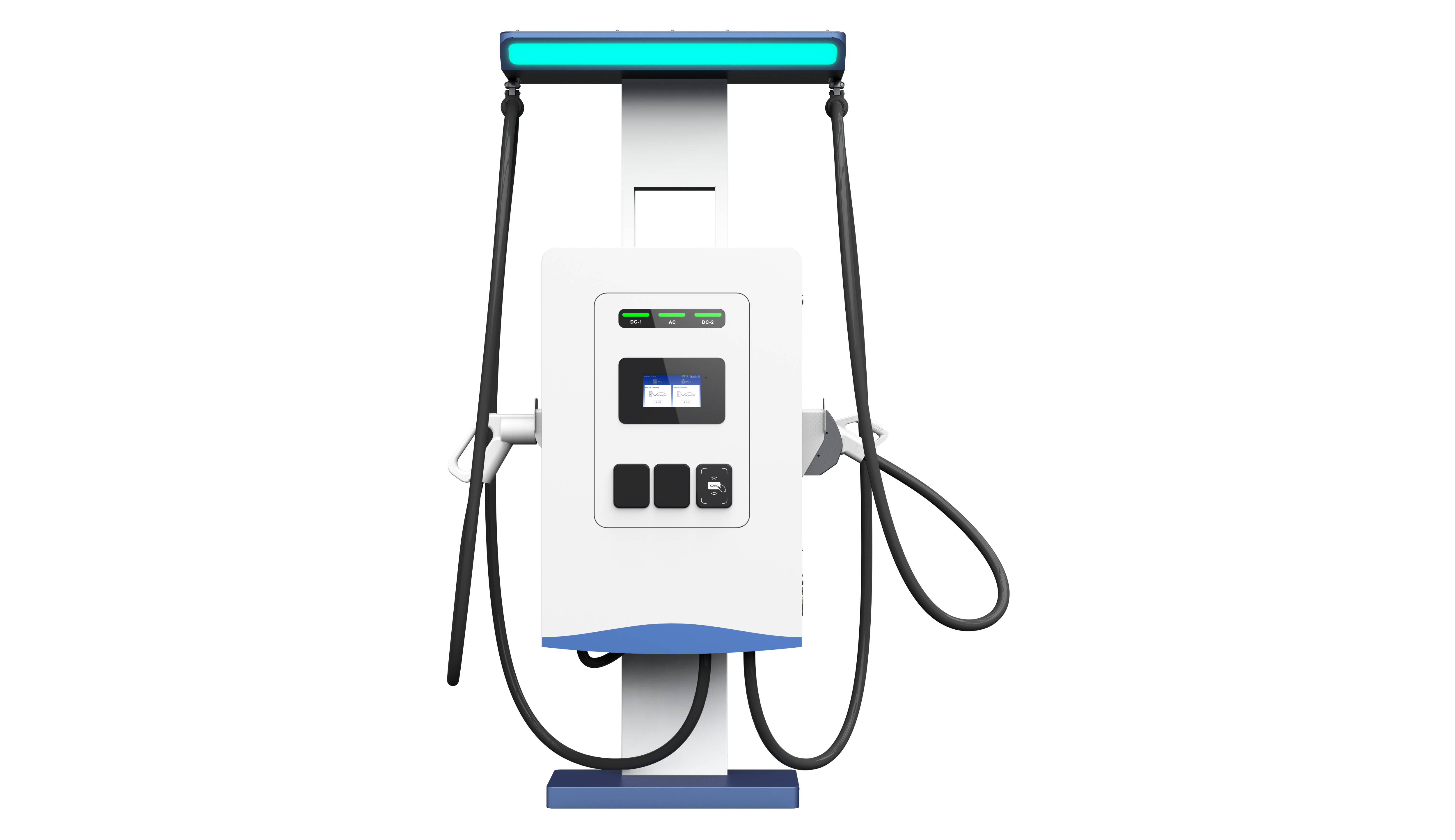

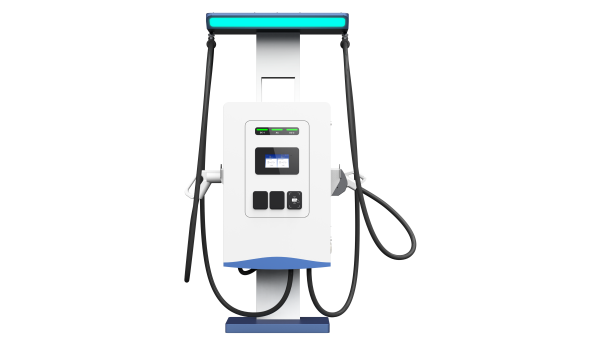

Configuration	Charger module configuration: Two REG1K0100G2 30kW1000V charger power modules Charging connector configuration: One or two CCS/NACS/GBT connectors configuration, CHAdeMO + CCS/NACS/GBT connectors configuration, optional AC Type 1 charging cable Charging connector capacity: GBT: 200A CCS: 200A NACS: 200A CHAdeMO: 125A AC: 32A/22kW Optional pedestal: Pedestal with two cable retractors and the light bar
