Air Cooled 440kW/600kW/800kW HPC Charger Power Cube
V2G Charger Power Cube
POWER MODULE SOLUTION, Split type HPC charger power cube/Split type V2G charger power cube

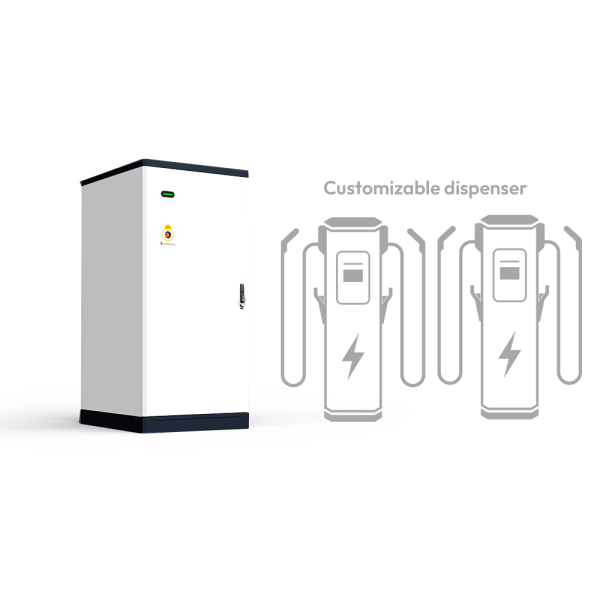

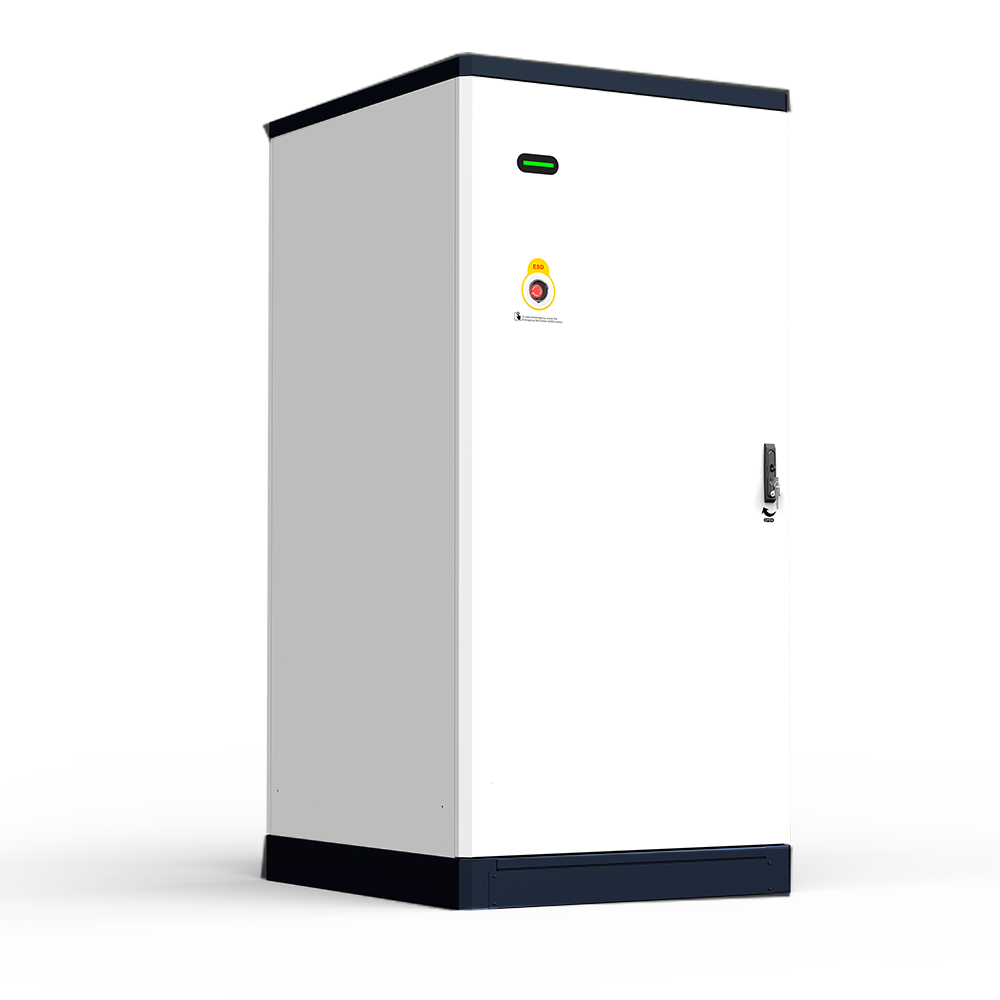

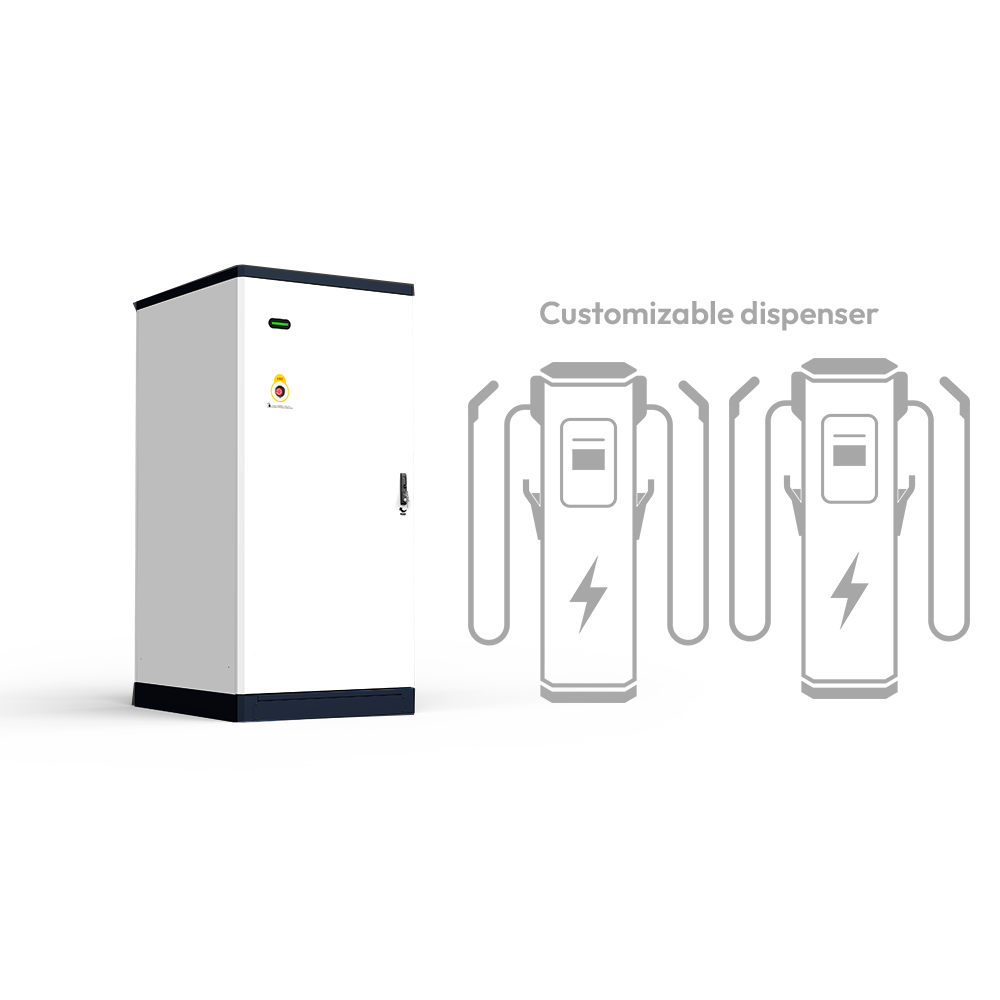

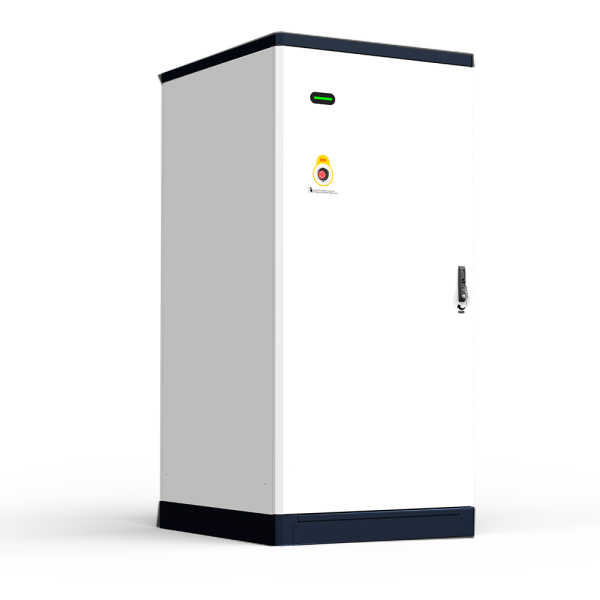

Air Cooled EXP600K3 HPC Charger Power Cube EXP440K3E V2G Charger Power Cube
EXP600K3 is the 600kW high power charger power cube with max 12 channel DC output interfaces and 2 channel AC input interfaces. This kind of power cube can be used for the DC source of the inverter and EV charger functional test and burning test, split type V2G and normal EV charger power cube, DC bus source and many kinds of industrial power supply applications. EXP440K3E is the 440kW high power bidirectional ACDC source with optional max 12 channel DC bus interfaces and 2 channel AC bus interfaces.
Description
Additional information
| AC side | AC input frequency/voltage:45-65Hz/3-phase+(N)+PE/260Vac-530Vac |
|---|---|
| DC side | DC voltage range:150V-1000V |
| Metering | 2 AC energy meters (opt) |
| Monitor | CAN interface |
| Parallel work | Support two power cubes parallel work with total output parallel to one bus to MW charging capacity |
| HMI | RGB LED, E-STOP |
| Mechanical | Dimensions: W * H * D mm = 1050 * 2200 * 1150 mm; weight: 720 kg + 20 * 15.5 kg = 1030 kg (full power modules） |
| Protection class | IP54/IK10 |
| Power module slot | 20 slots |
| Power module type | EXP600K3: 30kW REG1K0100G2 |
| Power switch | Intelligent power switch among the power module groups, can switch to each output channel to maximize the power efficiency |
| Noise | <65dB (rated input and output) |
| Standard | UL2202, CE, EN61851-21-2/EN 61000-6-4/EN 61000-6-2 Class A; EN 61851-1/EN 61851-23/EN 61851-24 |
| Working Environment | Ambient temperature: -25 ~ +70°C, full power output below 50°C, power derating 5%/°C above 50°C |
