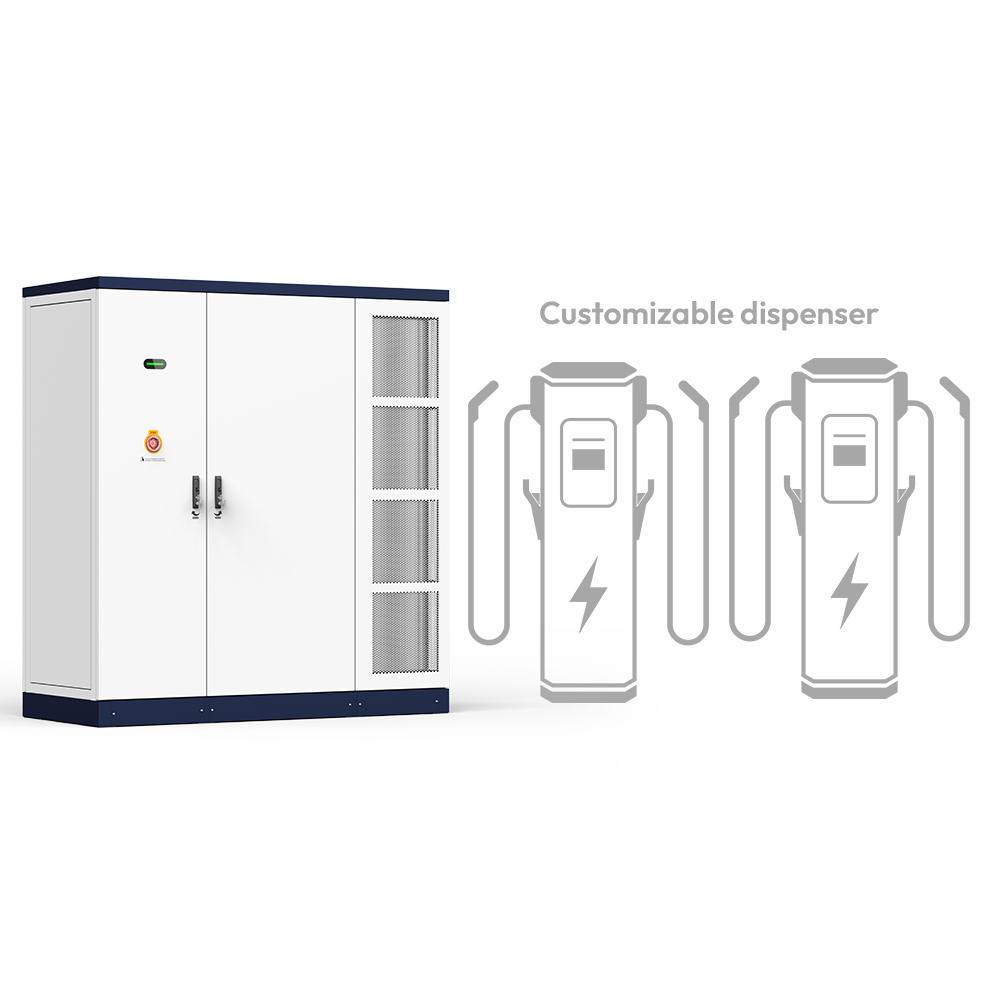

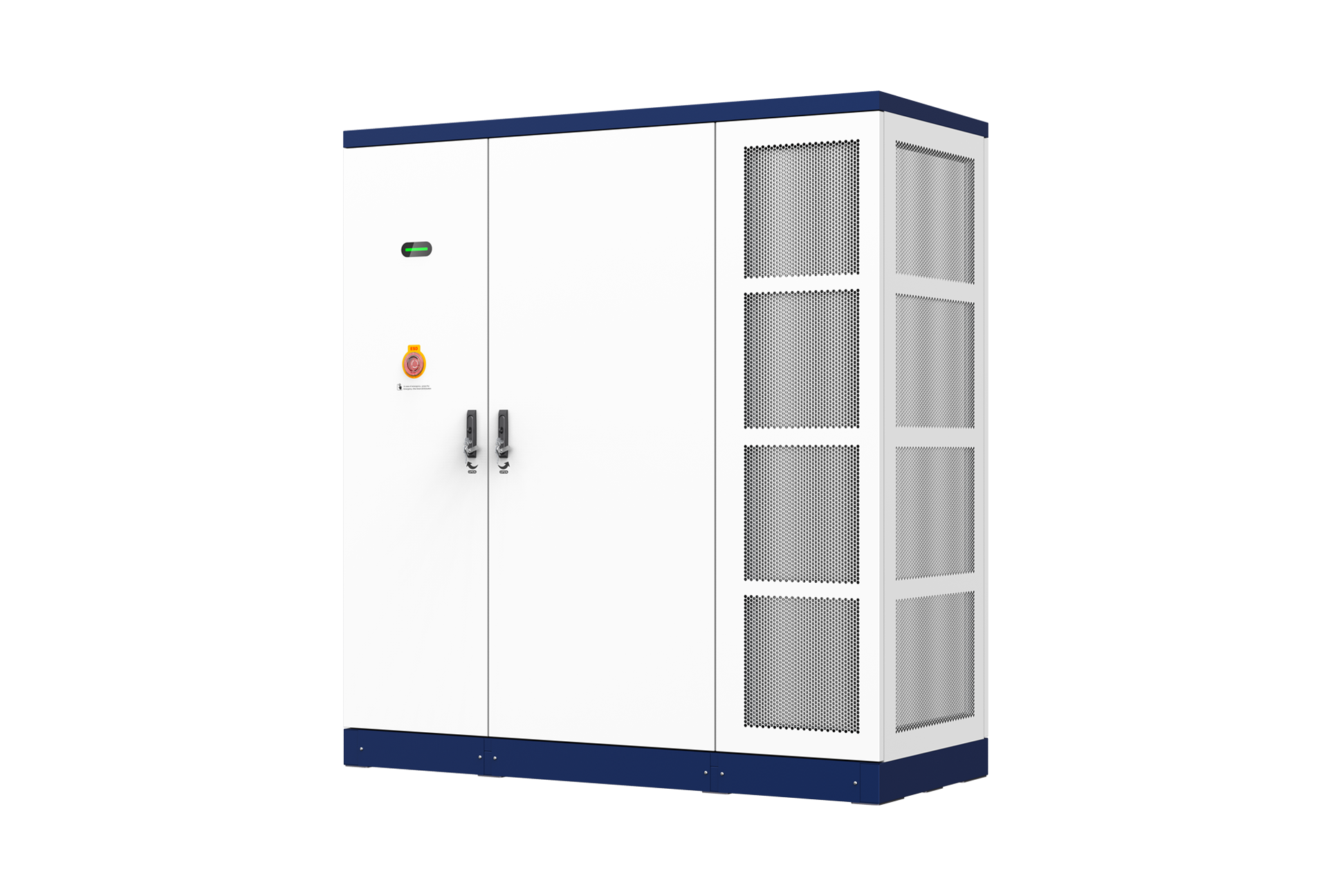

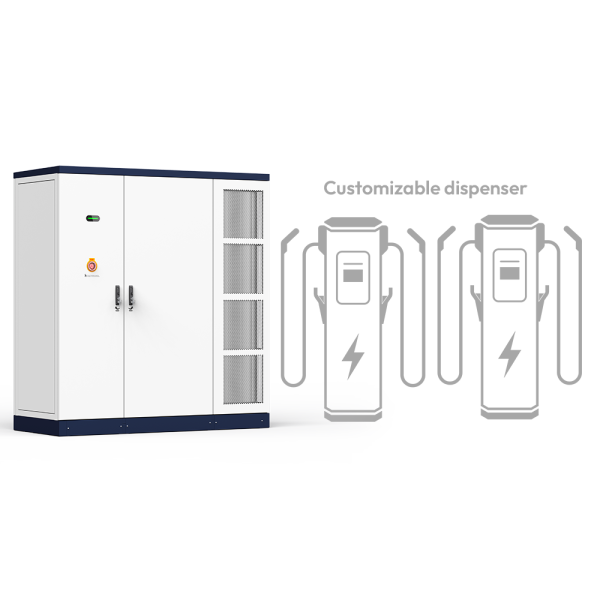

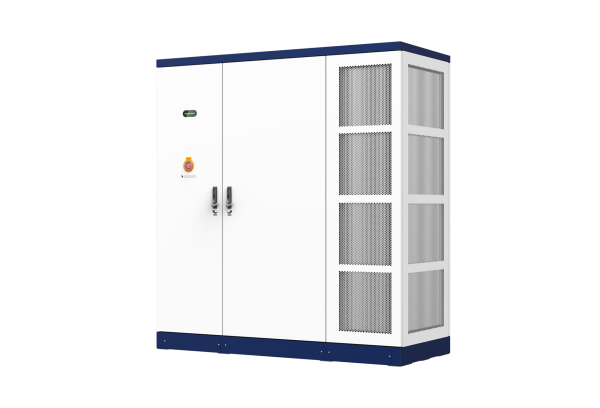

Liquid Cooled EXP600K4 HPC Charger Power Cube
EXP700K4E V2G Charger Power Cube
POWER MODULE SOLUTION, Split type HPC charger power cube/Split type V2G charger power cube
Liquid Cooled EXP600K4 HPC Charger Power Cube, EXP700K4E V2G Charger Power Cube
EXP600K4 is the 600kW High Power Charger Power Cube with max 10 channels DC output interfaces and 2 channel AC input interfaces.These kinds of full liquid cooled power cubes can be used for the split type V2G and normal EV charger power cube, DC source of the inverter and EV charger functional test and burning test, energy storage power converter cube, DC bus source and many kinds of industrial power supply applications, offering extremely high protection and reliability performance. EXP700K4E is the 700kW high power bidirectional ACDC source with optional max 10 channel DC bus interfaces and 2 channel AC bus interfaces.
Description
Additional information
| DC side | DC voltage range:150V-1000V |
|---|---|
| Metering | 2 AC energy meters (opt) |
| Monitor | CAN interface |
| Parallel work | Support two power cubes parallel work with total output parallel to one bus to MW charging capacity |
| HMI | RGB LED, E-STOP |
| Mechanical | Dimensions: W * H * D mm = 2050 * 2200 * 850 mm ; weight: 1100 kg + 20 * 30 kg = 1700 kg (full power module and full liquid) |
| Protection class | IP65 (excluding heat dissipation compartment) |
| Power module | EXP600K4: Max 20 * LRG1K0100G 30kW ACDC module |
| Power switch | Intelligent power switch among the power module groups, can switch to each output channel to maximize the power efficiency |
| Noise | <60dB (rated input and output), max noise <65dB |
| Standard | EMC/safety UL2202, CE, EN 61851-21-2/EN 61000-6-4/ EN 61000-6-2 Class A; EN 61851-1/EN 61851-23/EN 61851-24 |
| Working Environment | Ambient temperature: -25 ~ +70°C, full power output below 50°C, power derating 5%/°C above 50°C |
